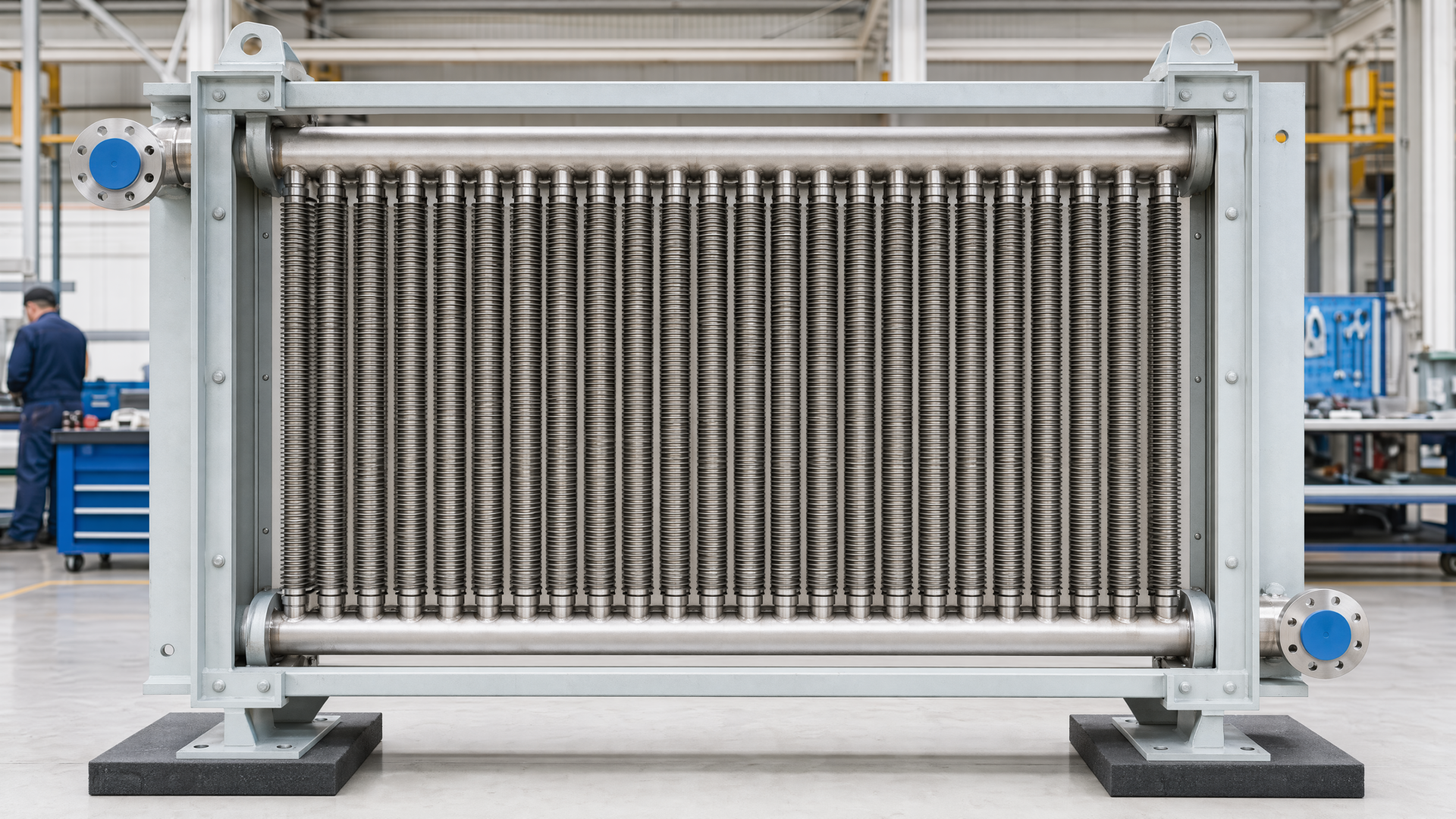

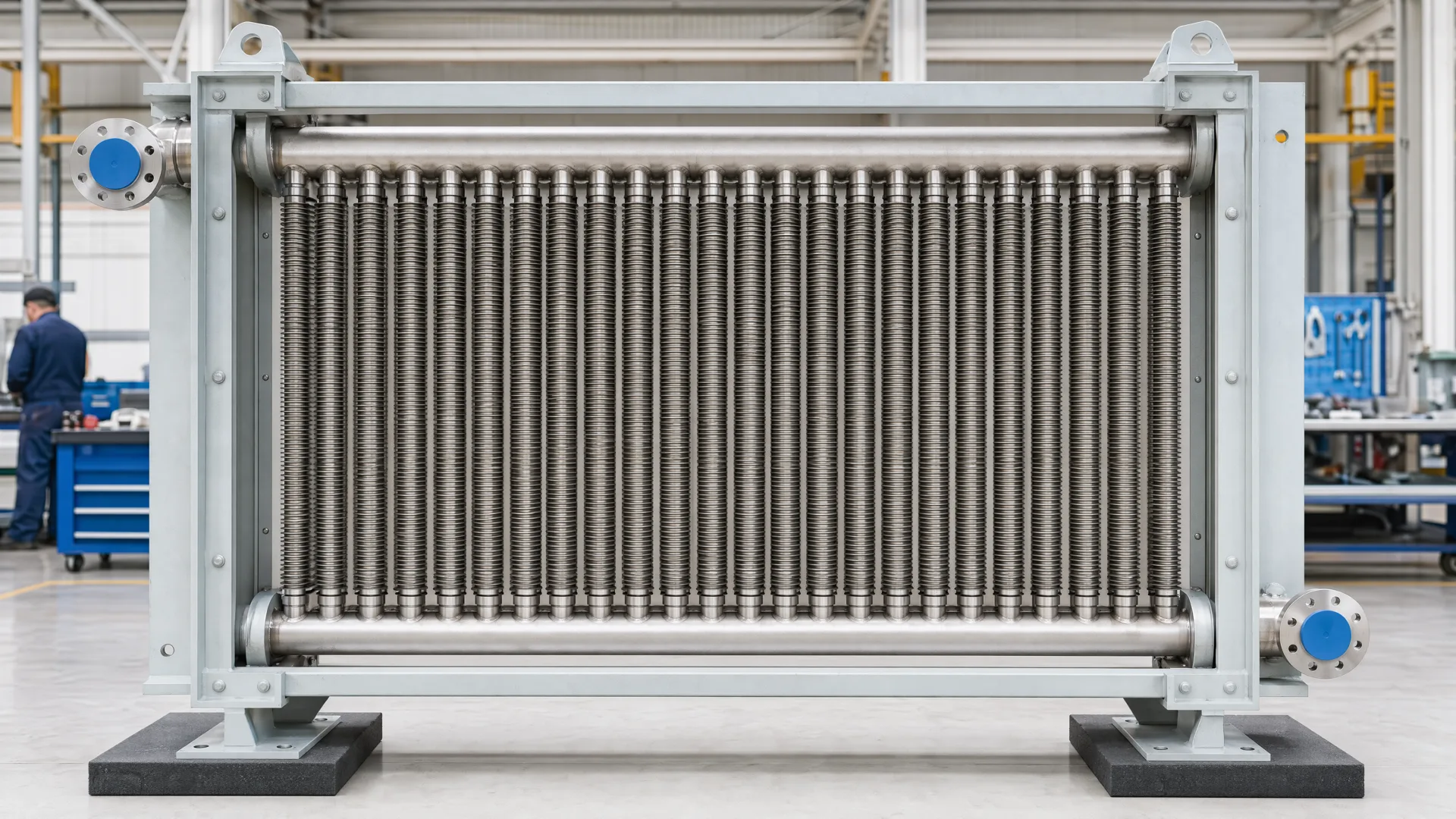

Illustrative complete rectangular finned-tube module with visible headers, frame and supports

Finned tubes to finished equipment

Finned-tube heat exchangers, engineered to be built.

The customer owns thermal duty, heat-transfer design, overall geometry and required interfaces. StelTherm owns manufacturing engineering: buildability review, fabrication detailing, finned-tube preparation, welded integration and agreed inspection.

Complete-unit illustration / ST2-58

Articles / Complete index

Read every guide in a stable order.

7 articles, organized for a quick first answer and a deeper technical handoff.

Open Articles

01 / Customer defines

Duty, thermal design, envelope and interfaces

Your design package establishes what the equipment must do and where it must connect.

02 / StelTherm makes buildable

DFM, fabrication detail, sequence and verification

We turn the agreed design into a practical route for producing, joining and checking the equipment.

01 / Manufacturing handoff

Design intent becomes a fabrication plan

We review access, datums, joining order, distortion risk, handling and inspection before the design is released to the floor.

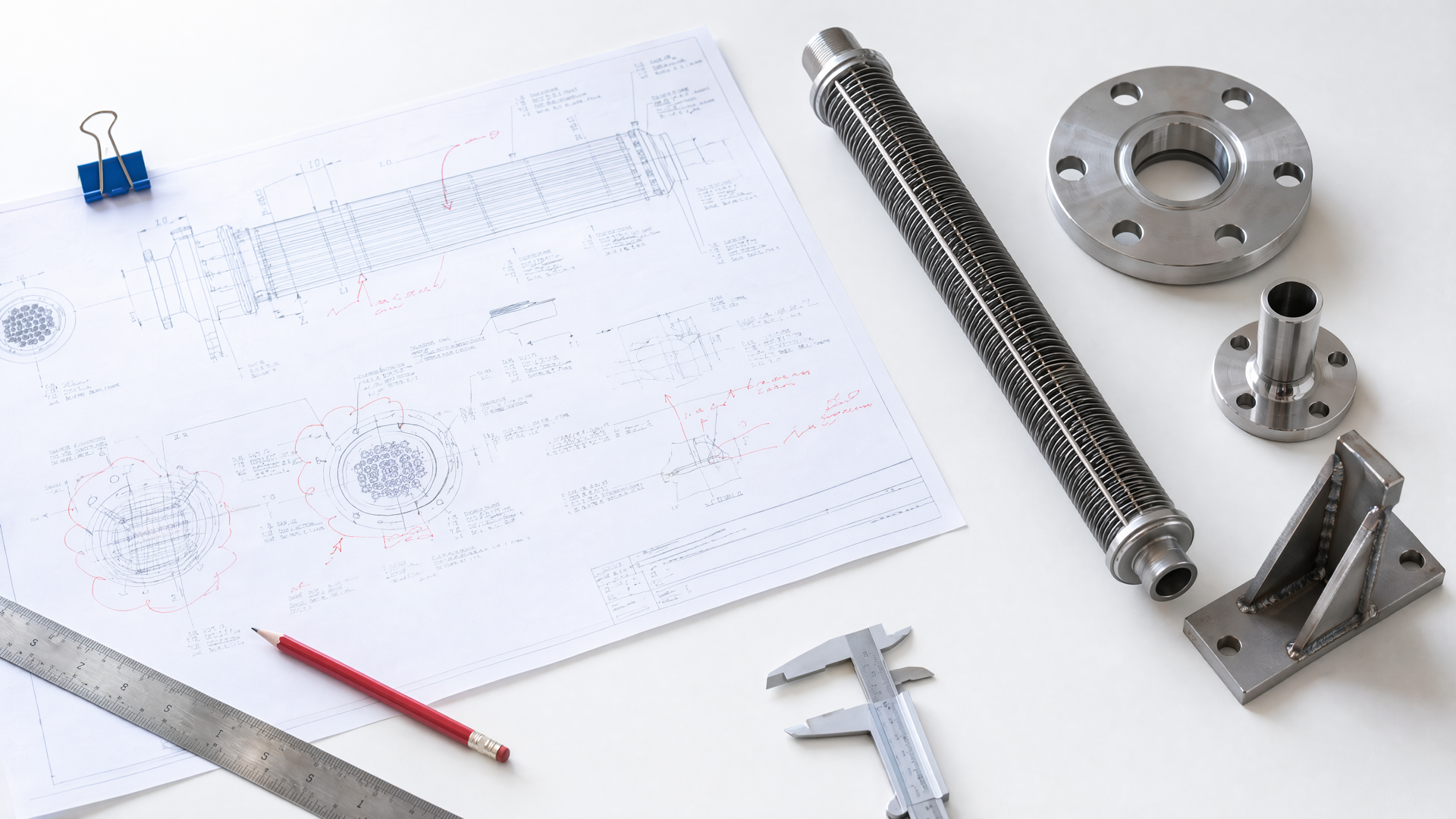

Drawing, redlines, finned-tube sample, flange and bracket arranged for a manufacturability review
Manufacturing engineer reviewing a drawing beside a finned-tube sample and fabricated components

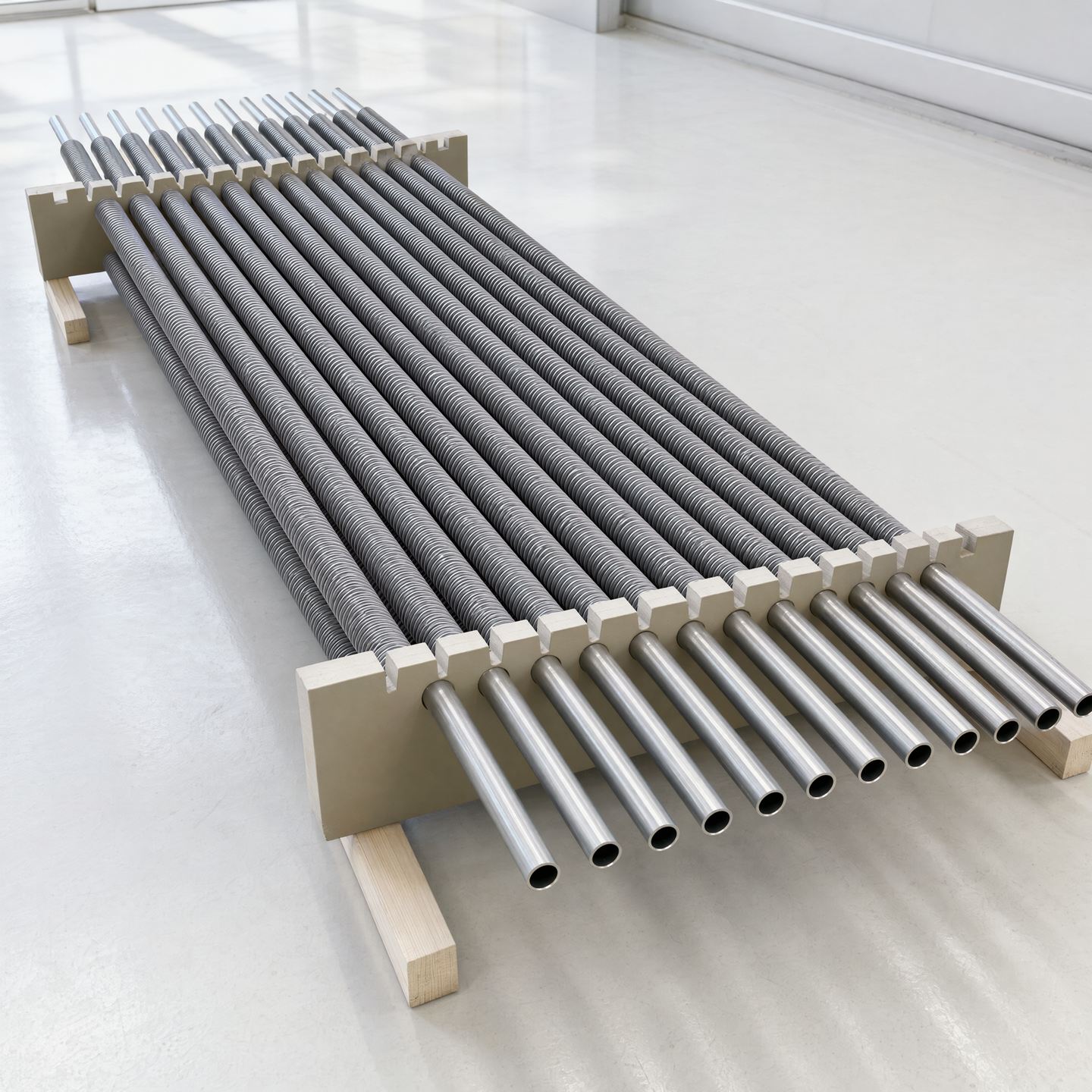

Ordered finned-tube bundle with clear bare tube ends before integration

Agreed output

Redlines, fabrication details, sequence decisions and quotation assumptions aligned to the customer's design authority.

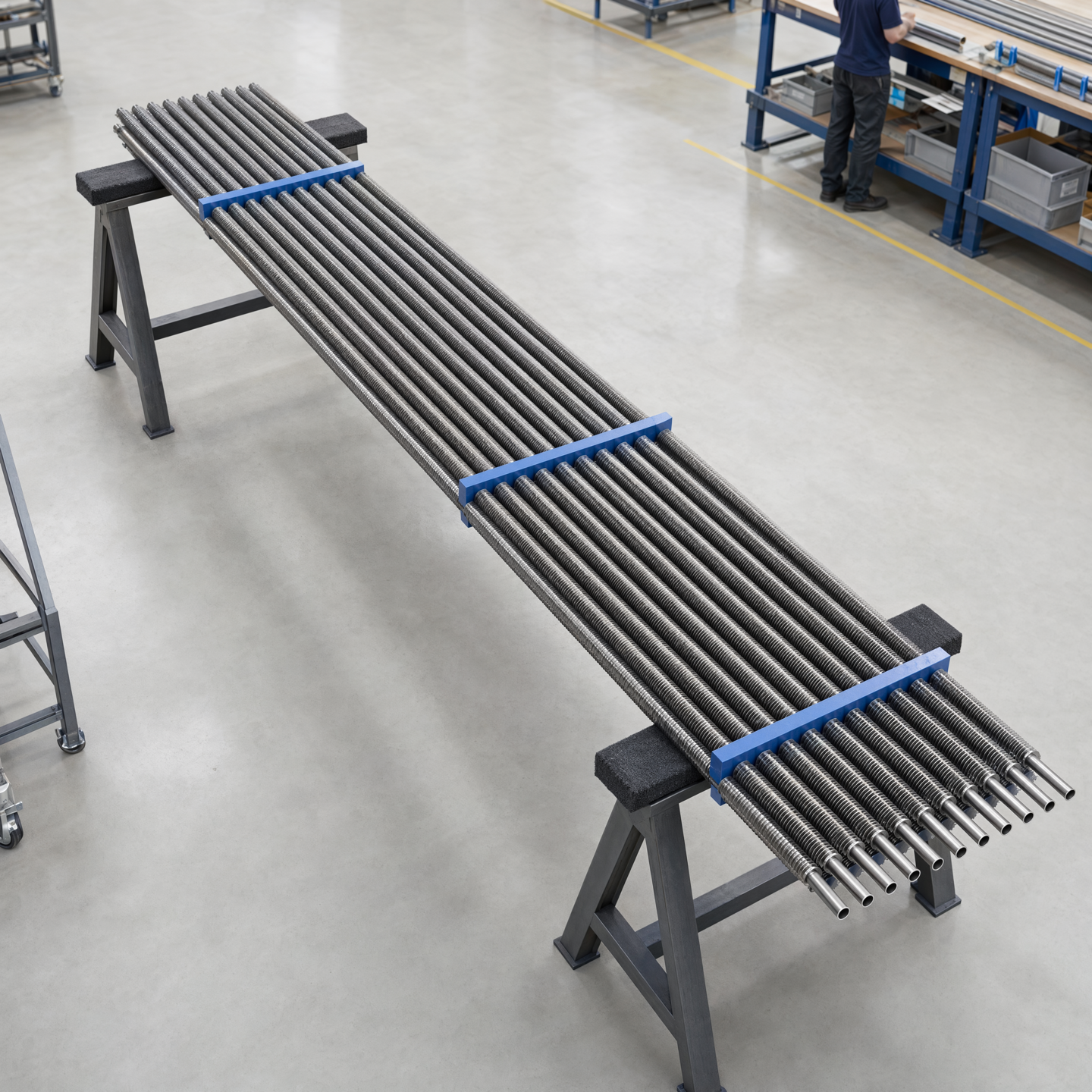

Illustrative grouped finned tubes arranged on temporary supports before assembly
Component readinessConfirm tube condition, orientation, bare ends and handling references before grouping becomes rigid.

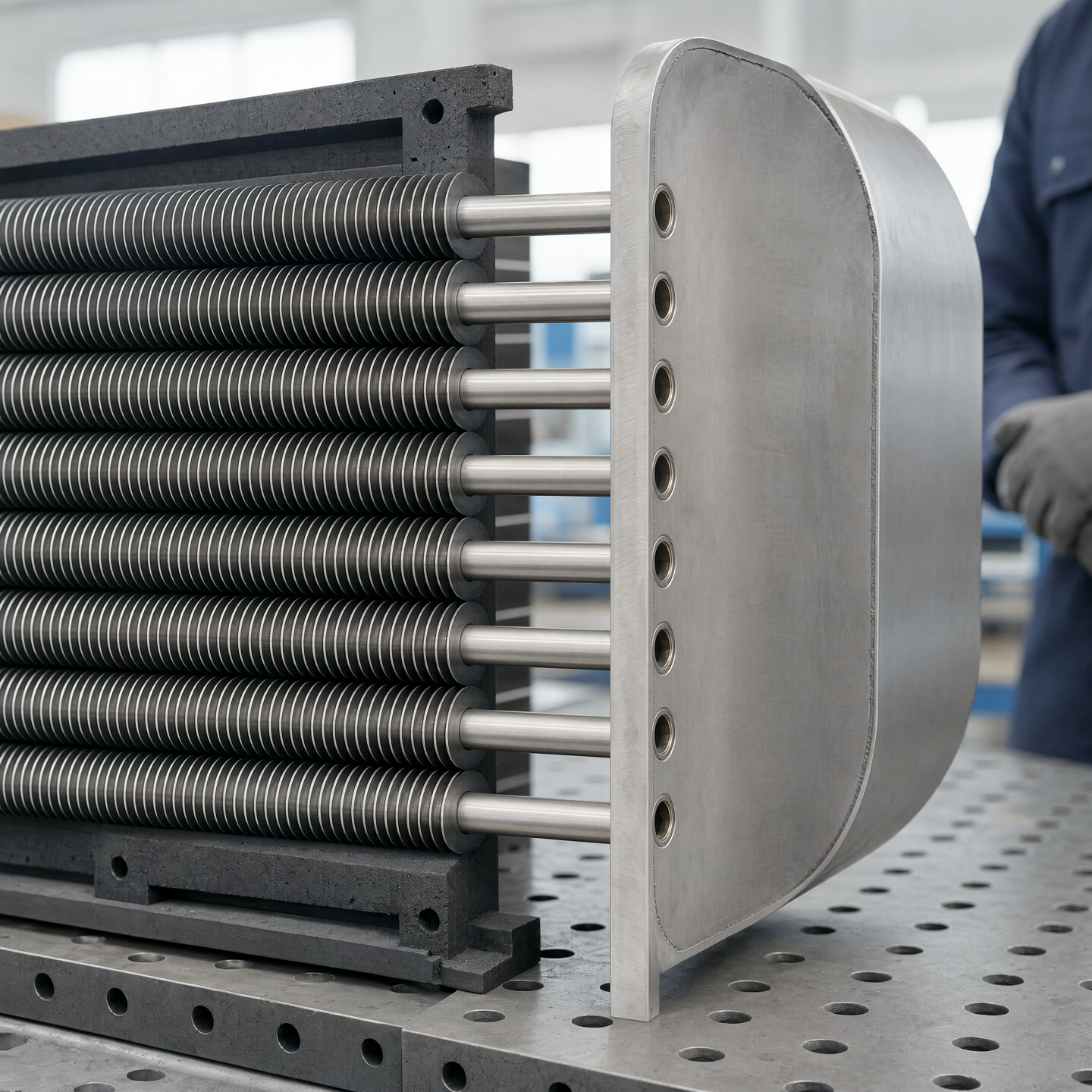

Illustrative continuous tube ends entering a single header chamber
Connection logicRead tube entry, header volume and working access as one manufacturing relationship.

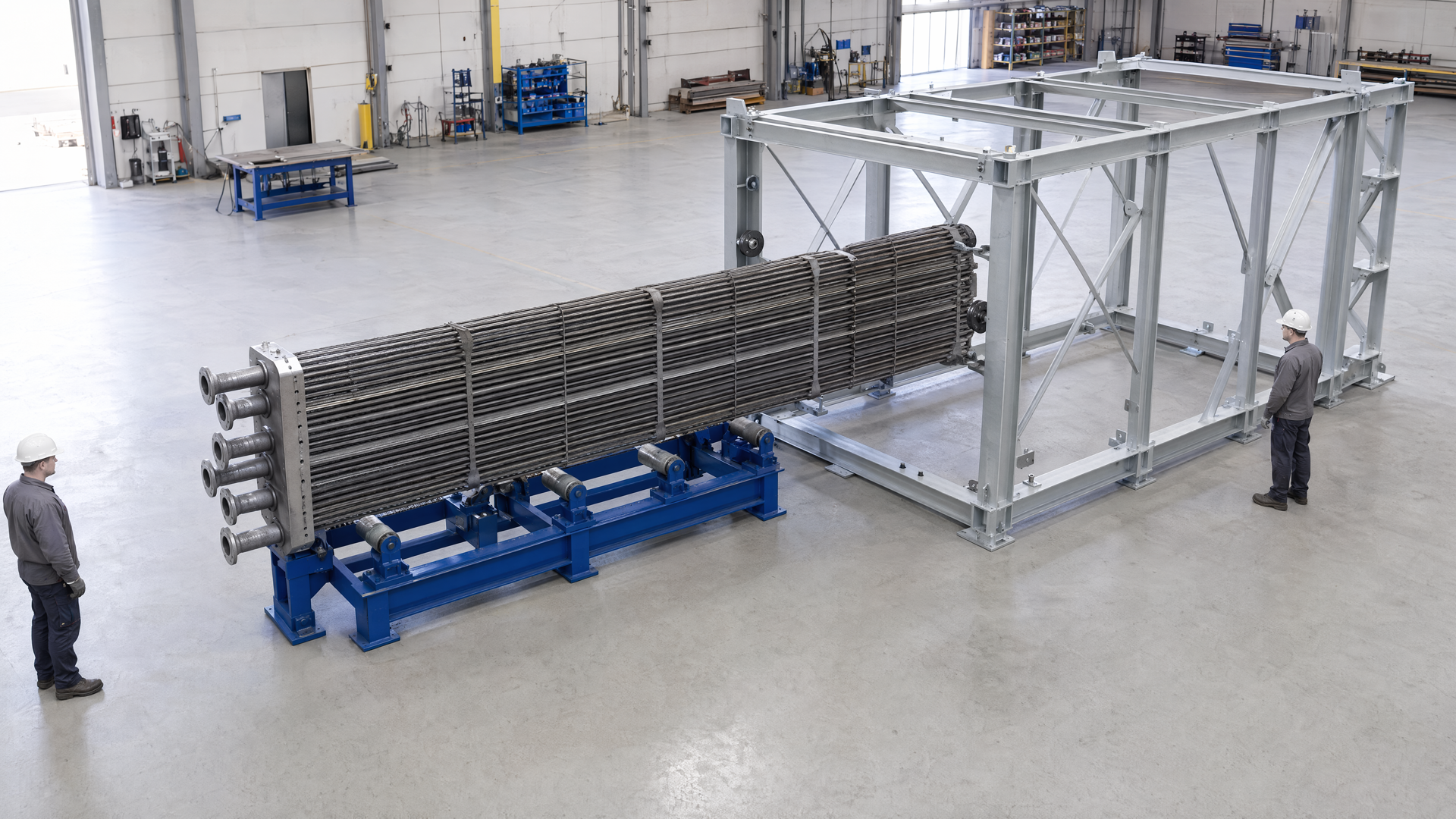

Illustrative finned-tube bundle moving into an open welded frame
Assembly pathKeep the insertion route, temporary supports and frame opening available before later work closes them.

02 / Core manufacture

Four connected capabilities, one finished assembly

Finned tubes are the starting point. Connections, support structure and controlled assembly turn them into saleable equipment.

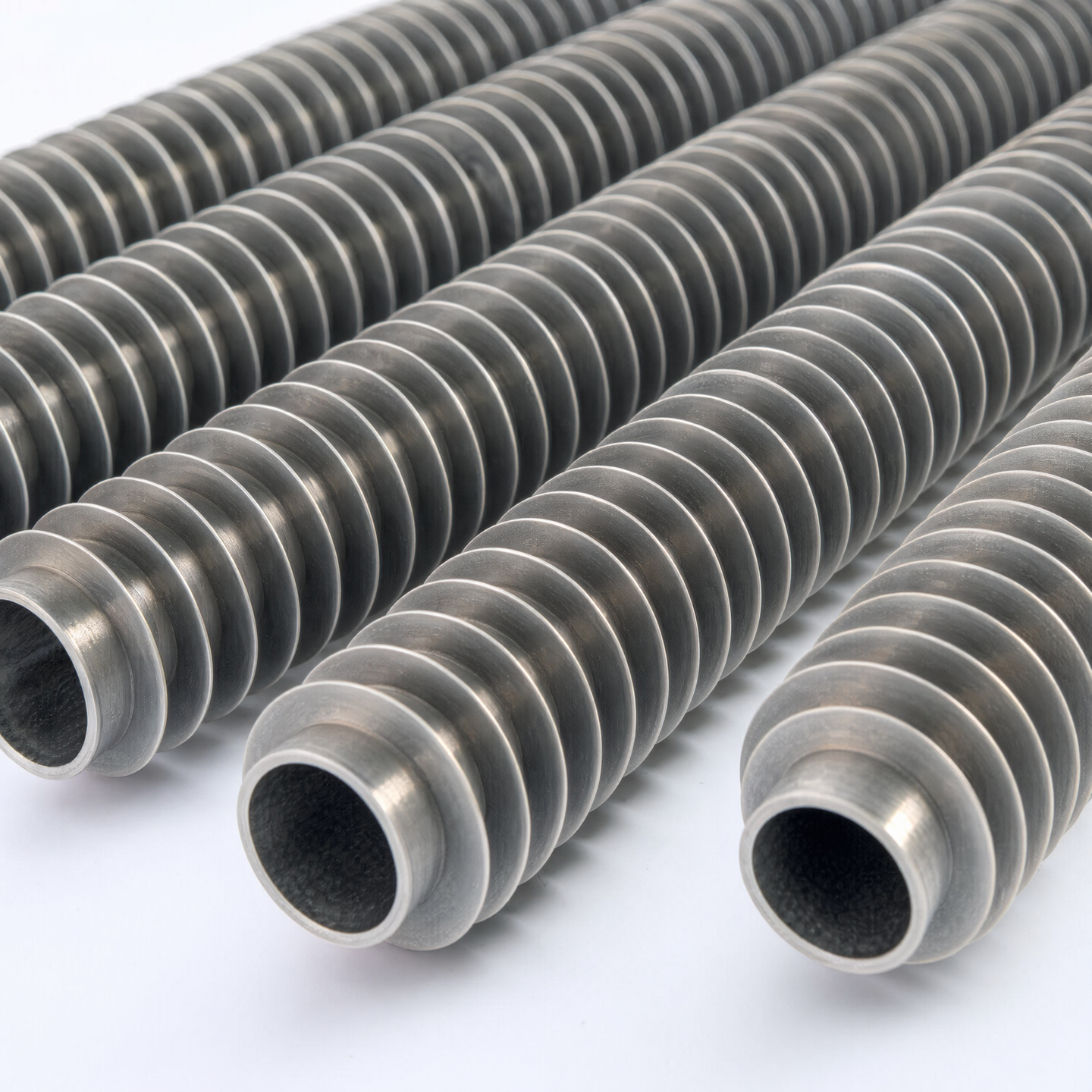

Macro view of continuous fins on parallel heat exchanger tubes

01 / Finned tubes

Tube preparation and ordered bundles

Fin continuity, bare-end requirements and handling points are reviewed against the intended assembly route.

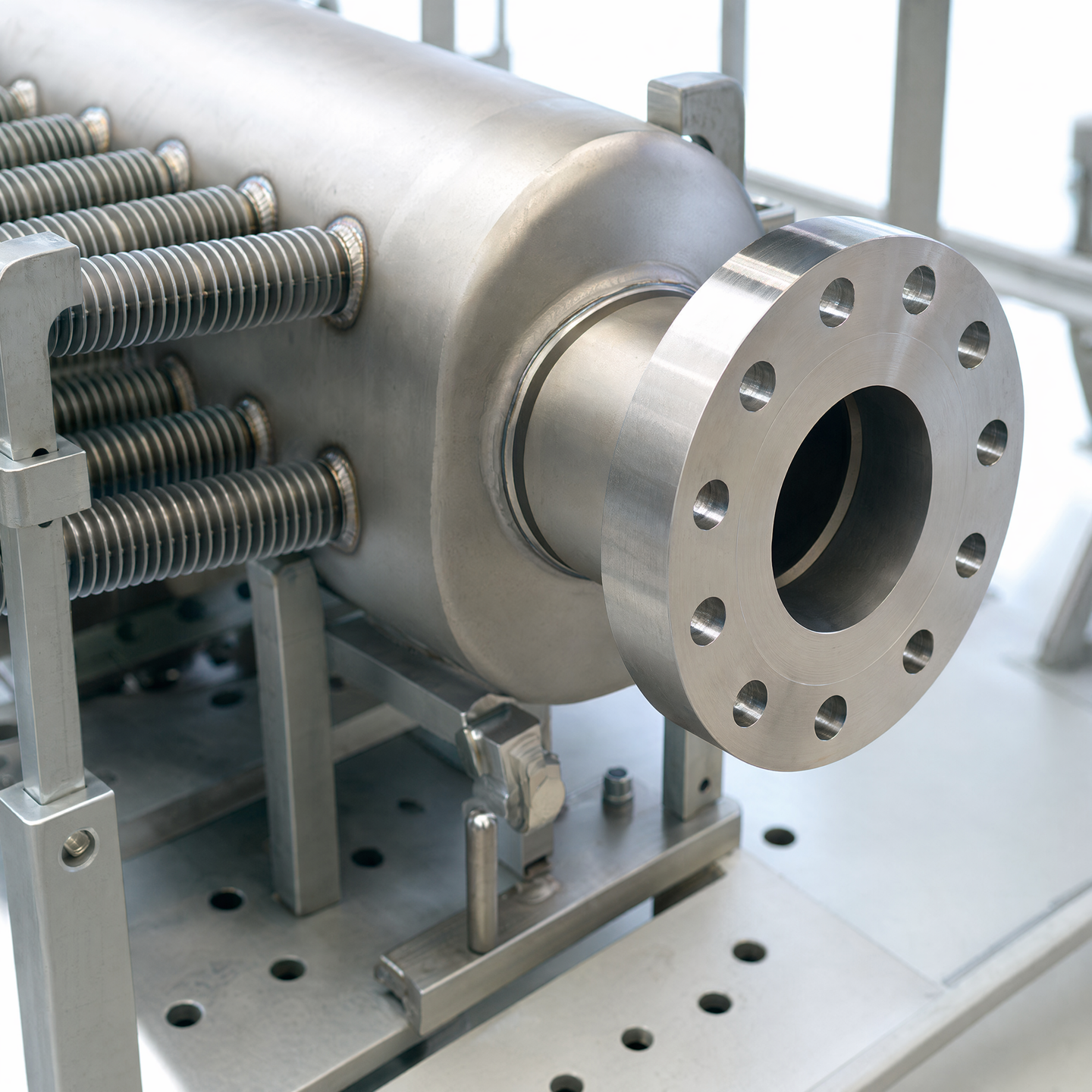

Header, nozzle and flange fit-up beside a bank of finned tubes

02 / Connections

Headers, nozzles and flanges

Interfaces are detailed around access, fit-up, weld order and the customer's required connection geometry.

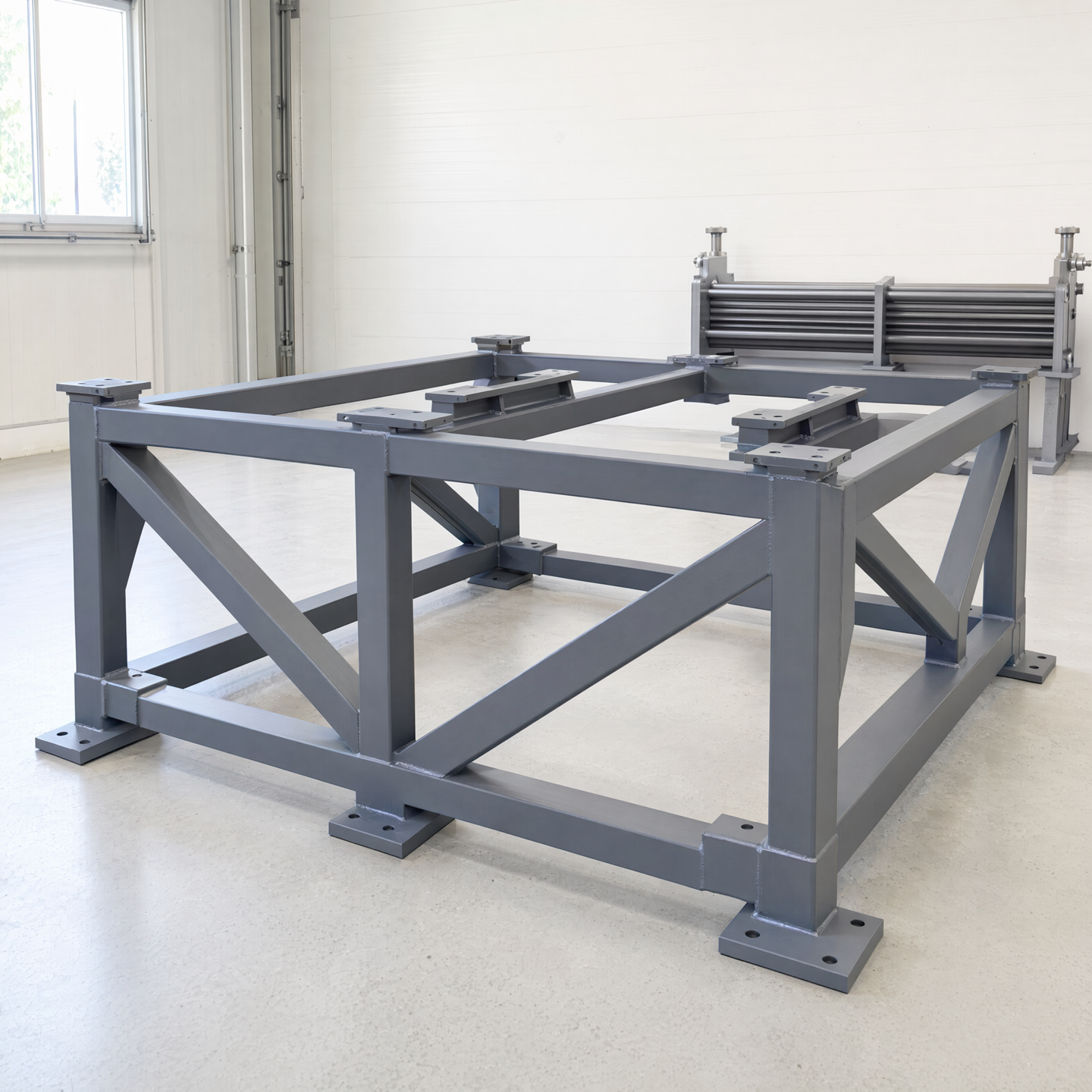

Welded support frame with bracing and mounting feet before equipment installation

03 / Structure

Frames, skids and supports

The structure is coordinated with equipment datums, joining access, handling and installation interfaces.

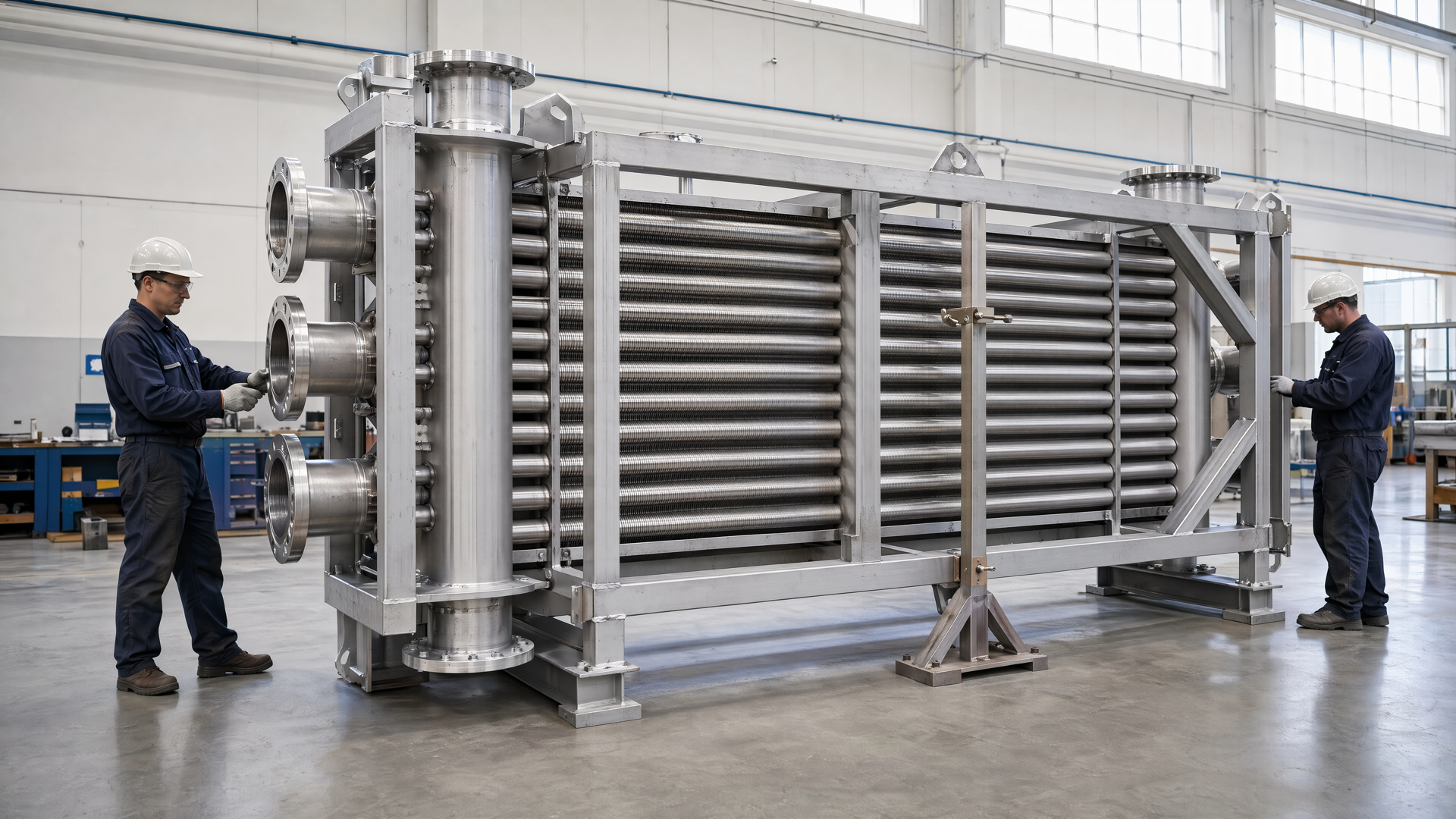

Large finned-tube exchanger assembly in progress with headers and welded frame visible

04 / Integration

Fit-up, welding and assembly

Components are brought together in an agreed sequence that preserves access and supports final verification.

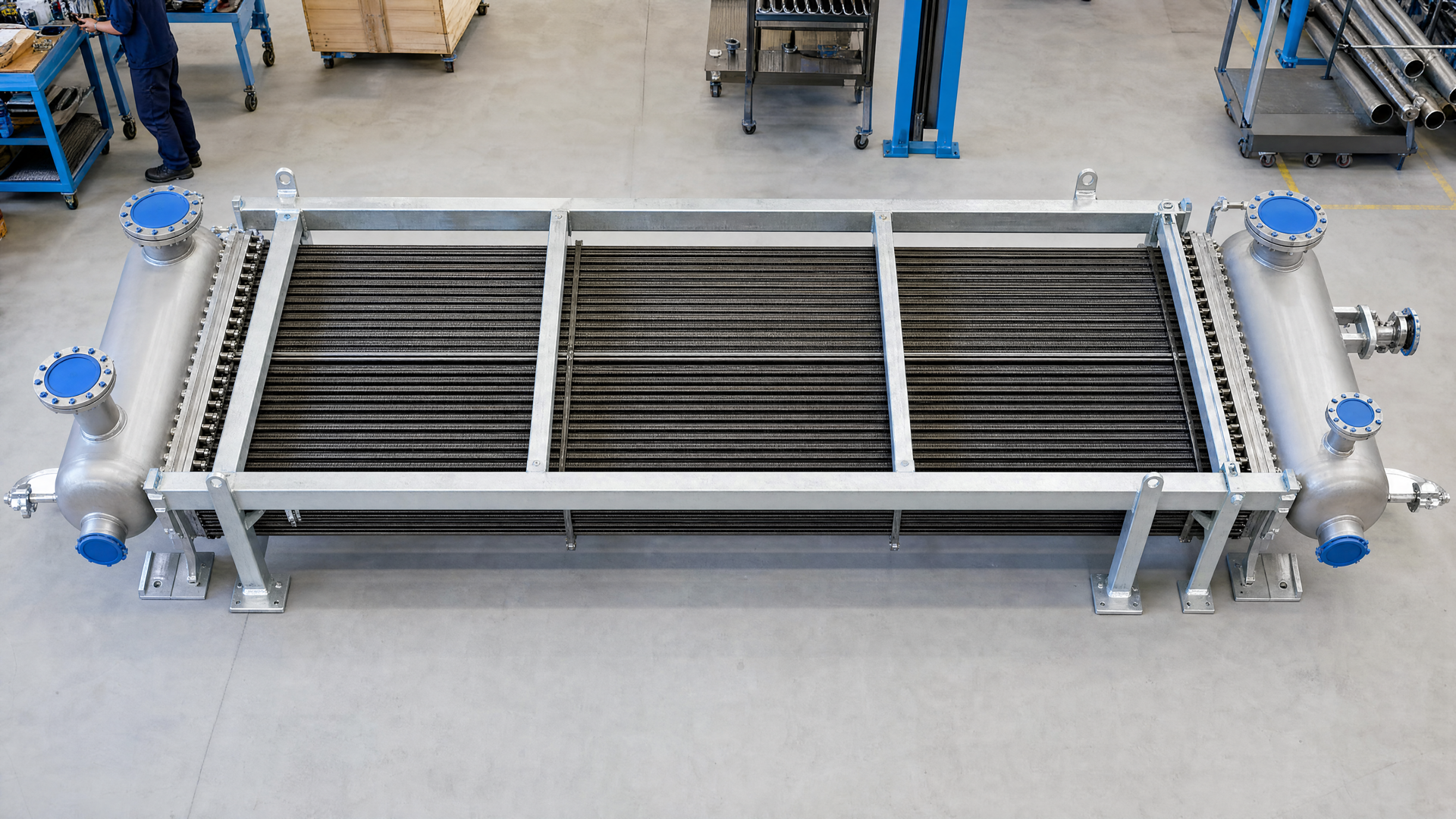

Illustrative full exchanger assembly with tube banks, connections and supporting frame
Integrated stateTrace mounting points, faces, openings and support relationships through the complete assembly instead of treating the components as separate products.

03 / DFM decisions

Designed on screen. Resolved for the floor.

A valid thermal design can still be difficult to fixture, weld, inspect or align. Our review focuses on the decisions that determine whether the agreed design can be made consistently.

  • Weld and tool access around adjacent components
  • Practical datums and tolerances for the chosen process
  • Sequence choices that reduce distortion and blocked access
  • Inspection access to the interfaces that matter

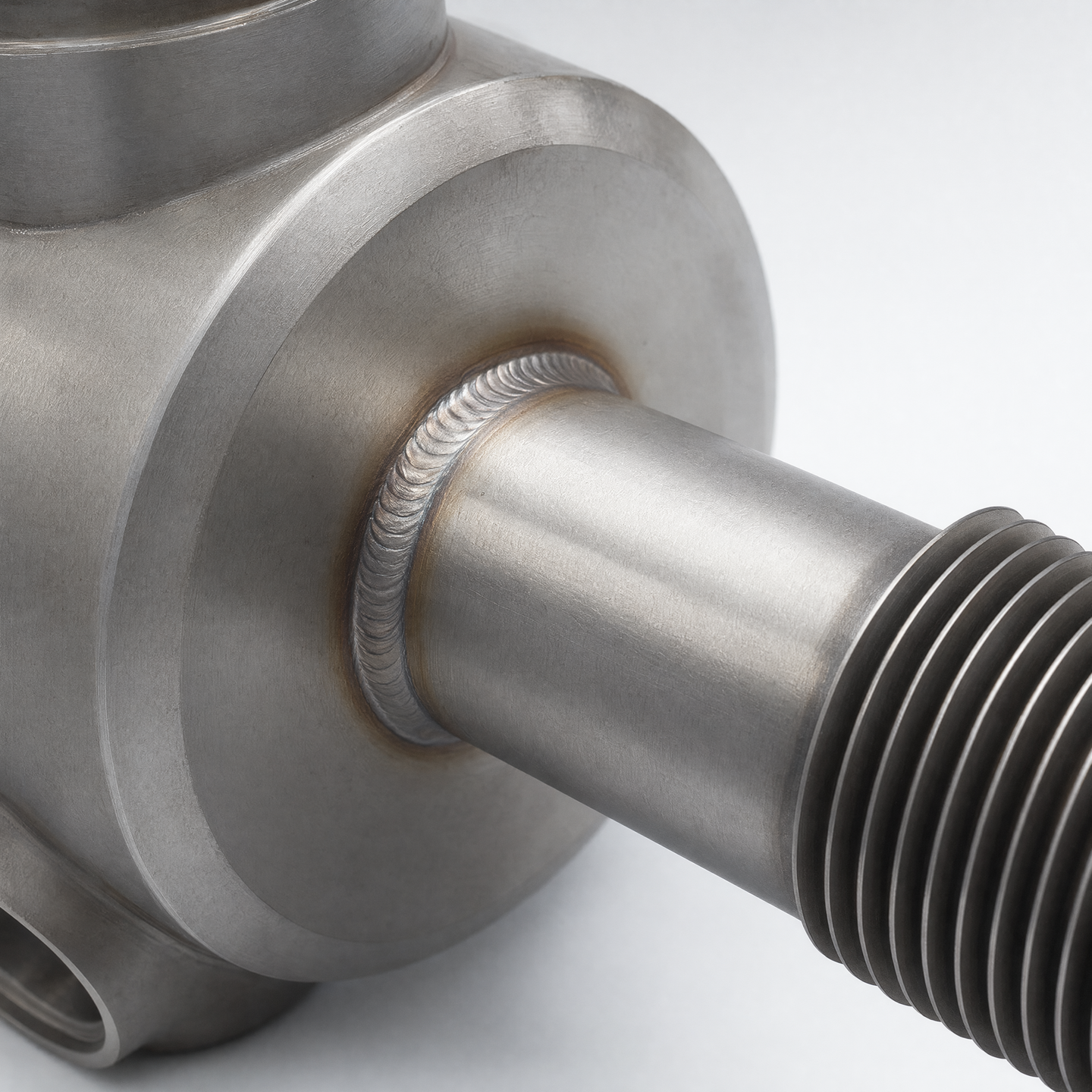

Clean weld joint at an exchanger connection beside a finned tube

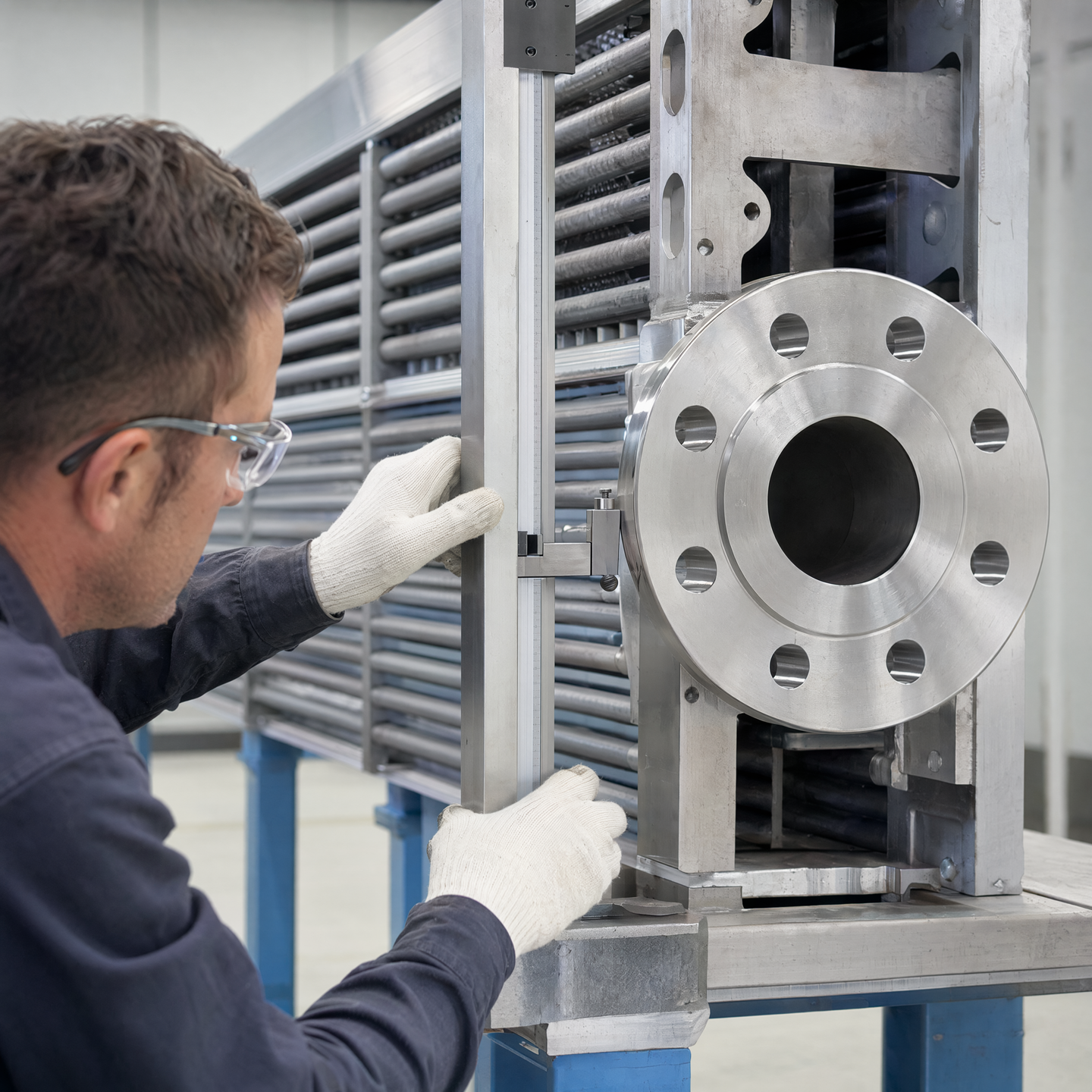

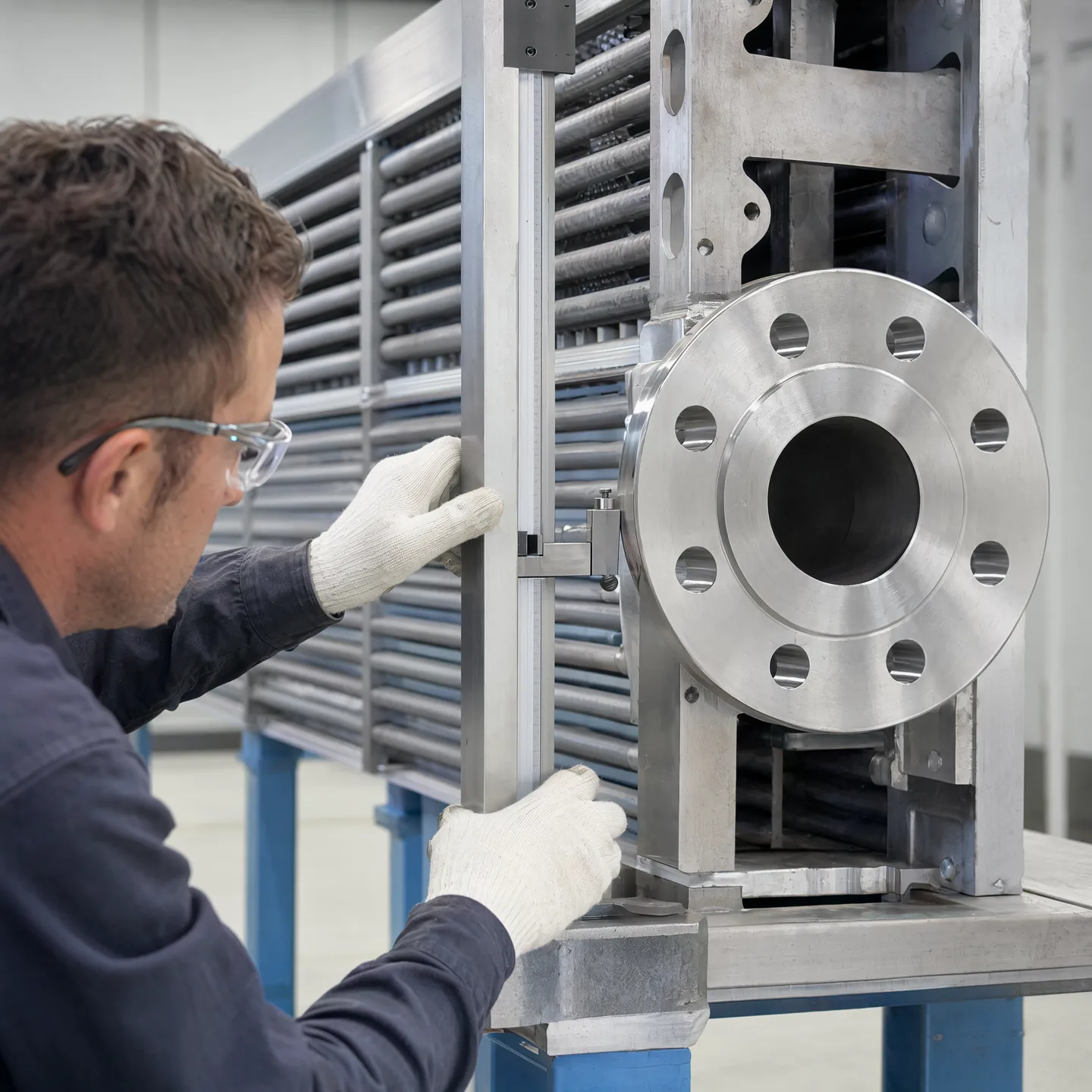

Inspector checking flange and interface alignment on a framed exchanger

04 / Build sequence

Review, detail, make, join, verify, protect

No universal route is imposed. The sequence is agreed around the actual exchanger geometry and manufacturing constraints.

  1. 01

    Review

    Confirm design responsibility, interfaces and open manufacturing questions.

  2. 02

    Detail

    Resolve datums, fit-up, access, sequence and agreed inspection points.

  3. 03

    Manufacture

    Prepare finned tubes, connections, frame parts and associated components.

  4. 04

    Integrate

    Fixture, fit and weld components in the planned order.

  5. 05

    Verify

    Check agreed dimensions, interfaces and visible manufacturing records.

  6. 06

    Protect

    Support and protect the finished assembly for the agreed delivery state.

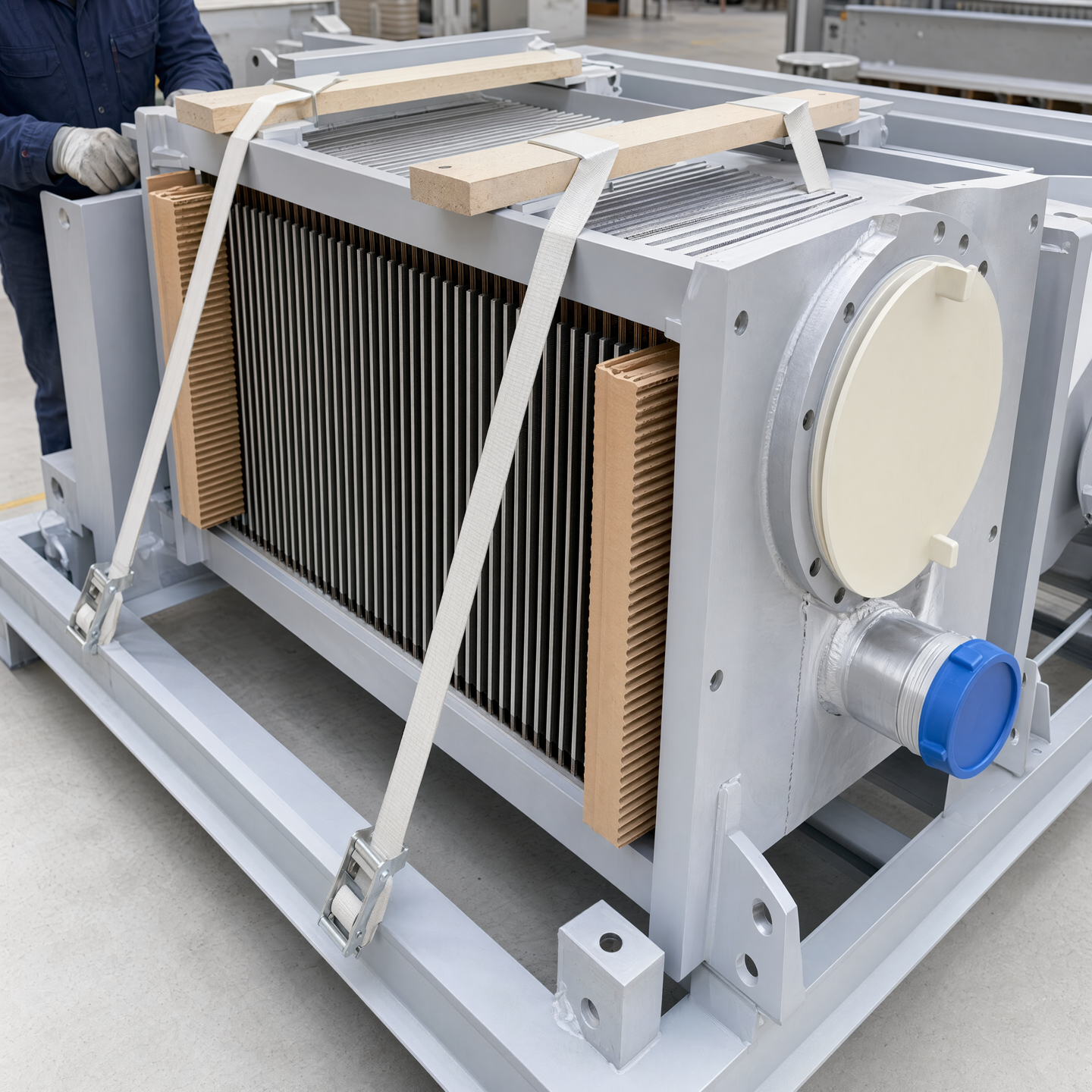

Illustrative local protection kept clear of fins, flange faces and capped openings
Local protectionProtect vulnerable areas without transferring restraint loads through exposed fins or sealing faces.

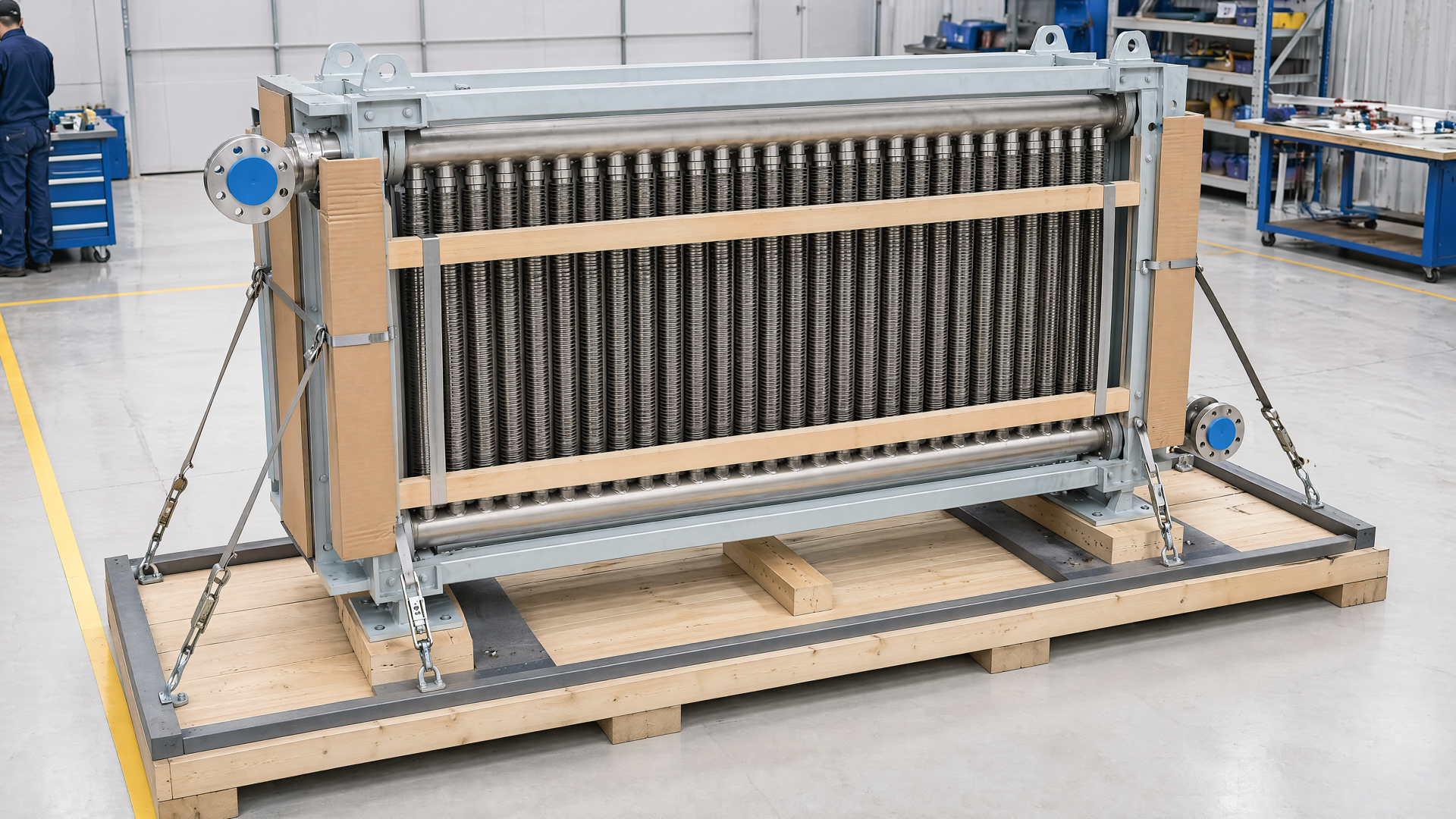

Illustrative complete finned-tube unit secured to a wood and steel transport base
Handoff conditionConnect restraints to robust frame points and keep the agreed interfaces visible and protected.

05 / Manufacturing framework

Keep every visual state connected to an owned decision

The images now sit beside the stages they explain. This framework records the inputs, review questions, manufacturing constraints and handoff basis that connect those visible states.

Customer input

Provide the current controlled drawings, customer-owned thermal duty and geometry, interface schedule, requested materials, quantity, project requirements and the condition expected at delivery.

Identify revision status and mark which dimensions, faces, openings and support locations are fixed. If the package is preliminary, state what remains open so a manufacturing proposal is not mistaken for an approved design change.

StelTherm review

We map the proposed scope from selected or supplied finned tubes through connections, frame integration, joining access, staged checks and protection, then return questions tied to the affected drawing or interface.

Each question includes the manufacturing reason, the downstream consequence and the decision owner. The review distinguishes information needed for quotation from detail that can be resolved only after an order-specific drawing exchange.

Manufacturing issue

Separate components compete for the same access, reference features and handling space. The fabrication route resolves sequence and restraint before a later operation hides the feature that still needs control.

Useful checkpoints occur while adjustment is still possible: before tube ends enter a connection, before the bundle closes the frame, after joining affects a datum and before covers or restraints hide an interface.

Agreed output

The quotation and review record define what is supplied, prepared, fabricated, assembled, checked, documented, protected or excluded. Customer-controlled requirements remain governed by the approved drawings.

The final handoff follows that same basis. It identifies the assembly condition, open or protected interfaces, selected records and any loose items without implying a universal test package, certification or guaranteed thermal result.

All configurations and process views on this page are illustrative. They support a drawing-led discussion about buildability; they do not represent a catalogue model, a customer project, an actual StelTherm facility or a promise that every shown process is included in every order.

Before a route is accepted, each transition should name the controlling input, the feature that must remain available, the manufacturing question and the person authorized to approve a change. That record follows the work from quotation into fabrication detail, temporary support, assembly sequence, selected checks and final protection. If a drawing revision changes an interface or delivery state, reopen the affected decisions instead of carrying an earlier assumption forward. This keeps the finished unit connected to the current customer basis without transferring thermal design or equipment-selection responsibility.

06 / Assembly configurations

Equipment, not a loose parts catalogue

Reference configurations show how finned tubes, connections and support structures become integrated exchanger assemblies.

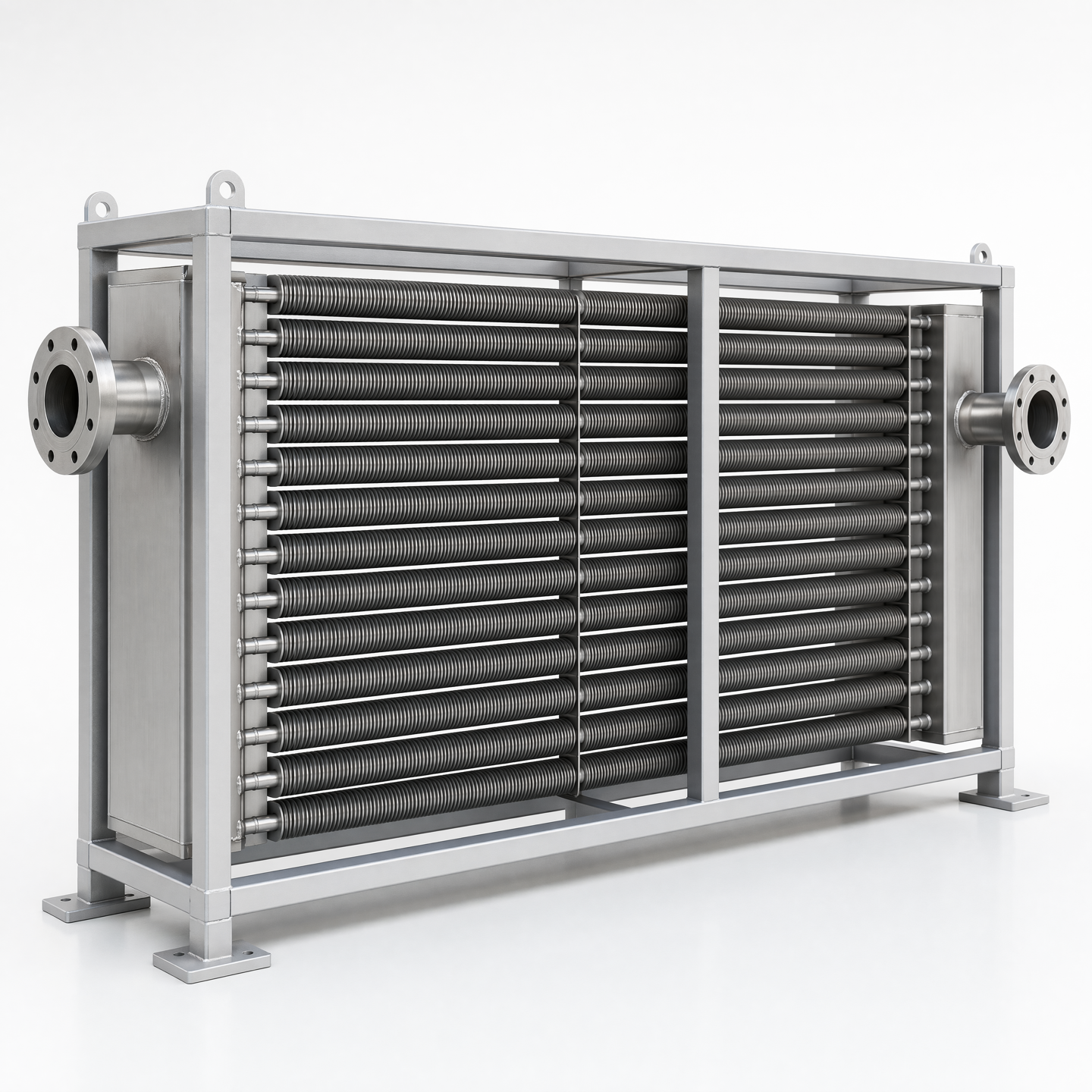

Complete rectangular finned-tube coil module inside a welded frame

Framed coil module

Compact interfaces, visible structure

A reference route for coordinating tube banks, side headers, connection positions and a stable mounting frame.

Skid assembly

Multiple banks, one handling unit

A reference route for integrating tube banks, manifold connections, access space and a transportable support structure.

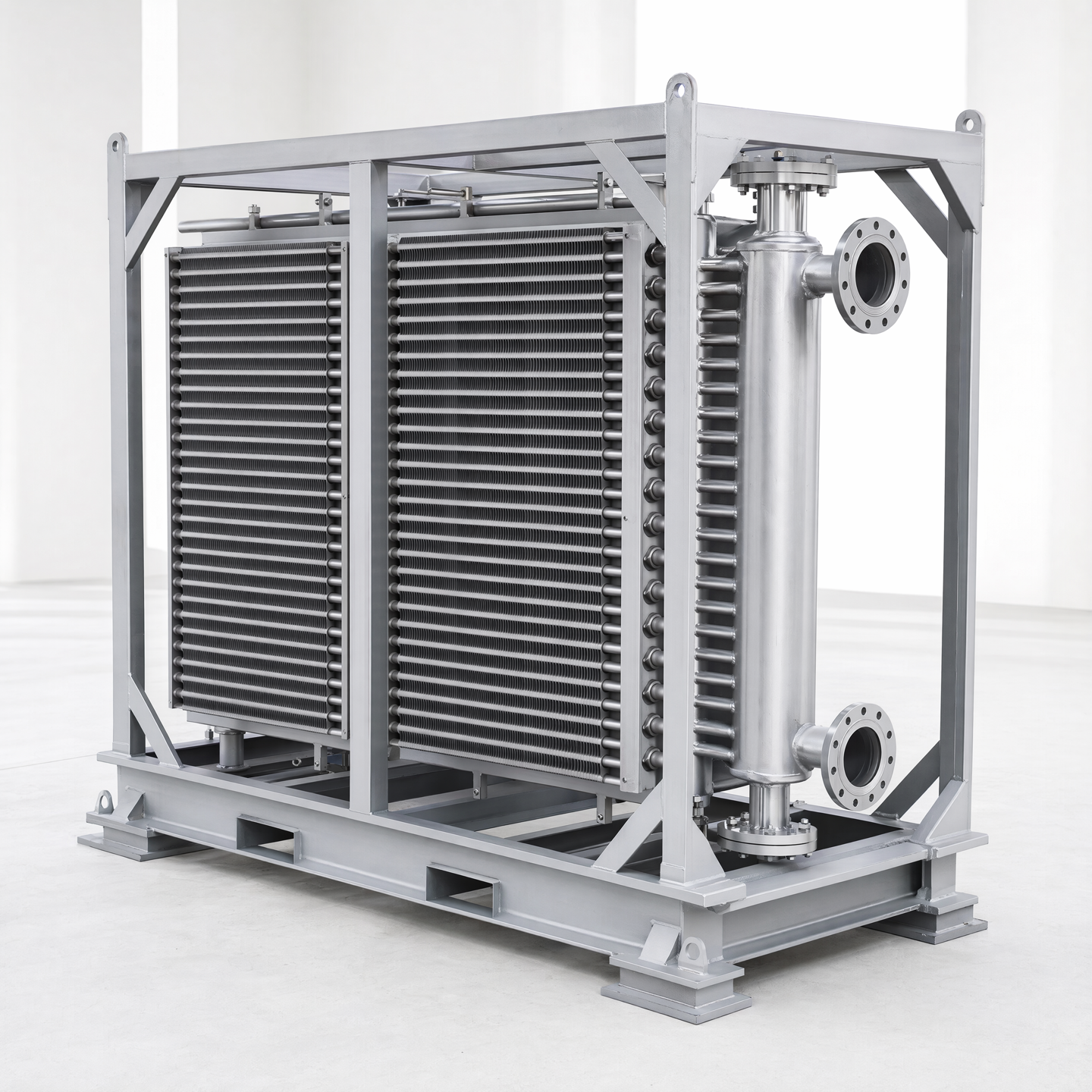

Compact skid-mounted finned-tube exchanger with manifold, flanges and welded frame

07 / Start the review

Bring the design. We will work through how to build it.

Share the exchanger type, design status, required interfaces and governing requirements. Drawings can follow by email after the initial inquiry.

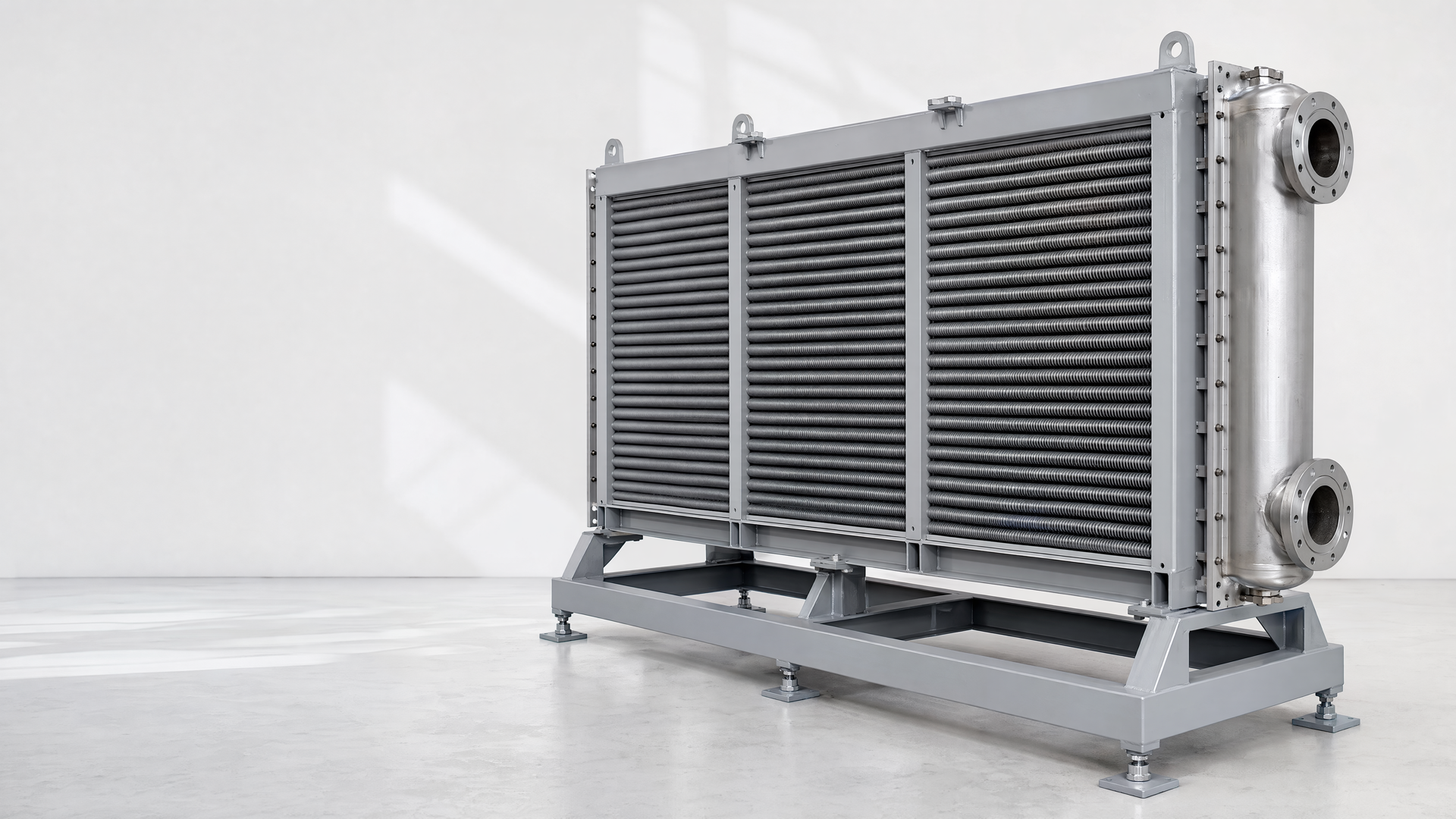

Complete finned-tube exchanger positioned with clear space for project review copy
