Capabilities that make the design buildable.

You retain responsibility for thermal duty, heat-transfer design, overall geometry and required interfaces. We review how the design can be fabricated, propose practical manufacturing changes, and detail the agreed build route before production.

Illustrative compact complete assembly with two parallel finned-tube bundles

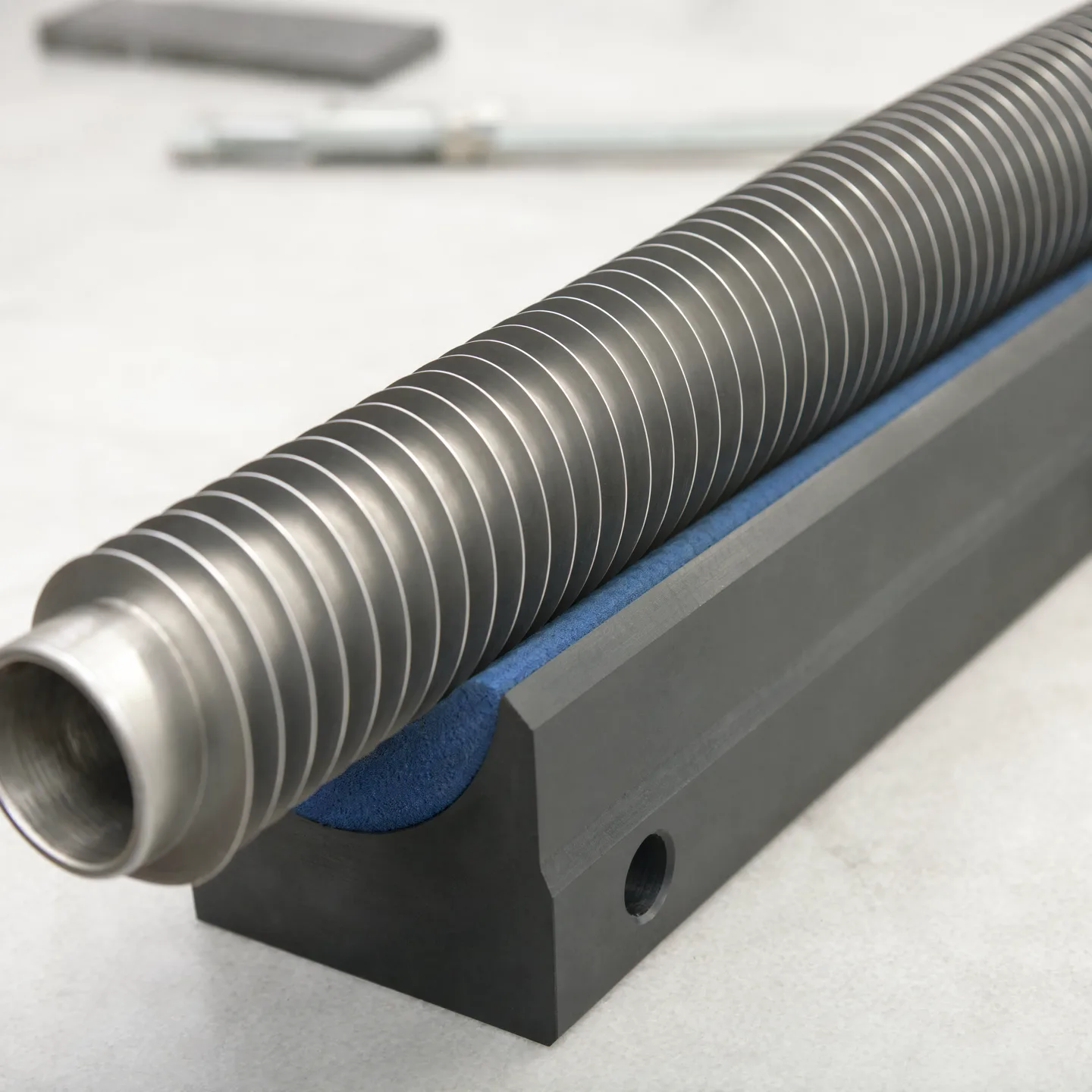

Illustrative close view of continuous fins around a tube body

01 / Finned tubes

The core product, prepared for integration

Tube geometry, fin continuity, bare ends, spacing and handling are reviewed in the context of the complete exchanger assembly.

Ordered finned-tube bundle with bare connection ends and temporary supports
Continuous fins on parallel heat exchanger tubes in a bright product view
Illustrative complete exchanger assembly with tube banks, connections and frame

Review focus

Fin protection, un-finned end length, tube ordering, support points and the sequence for bringing the bank into the final frame.

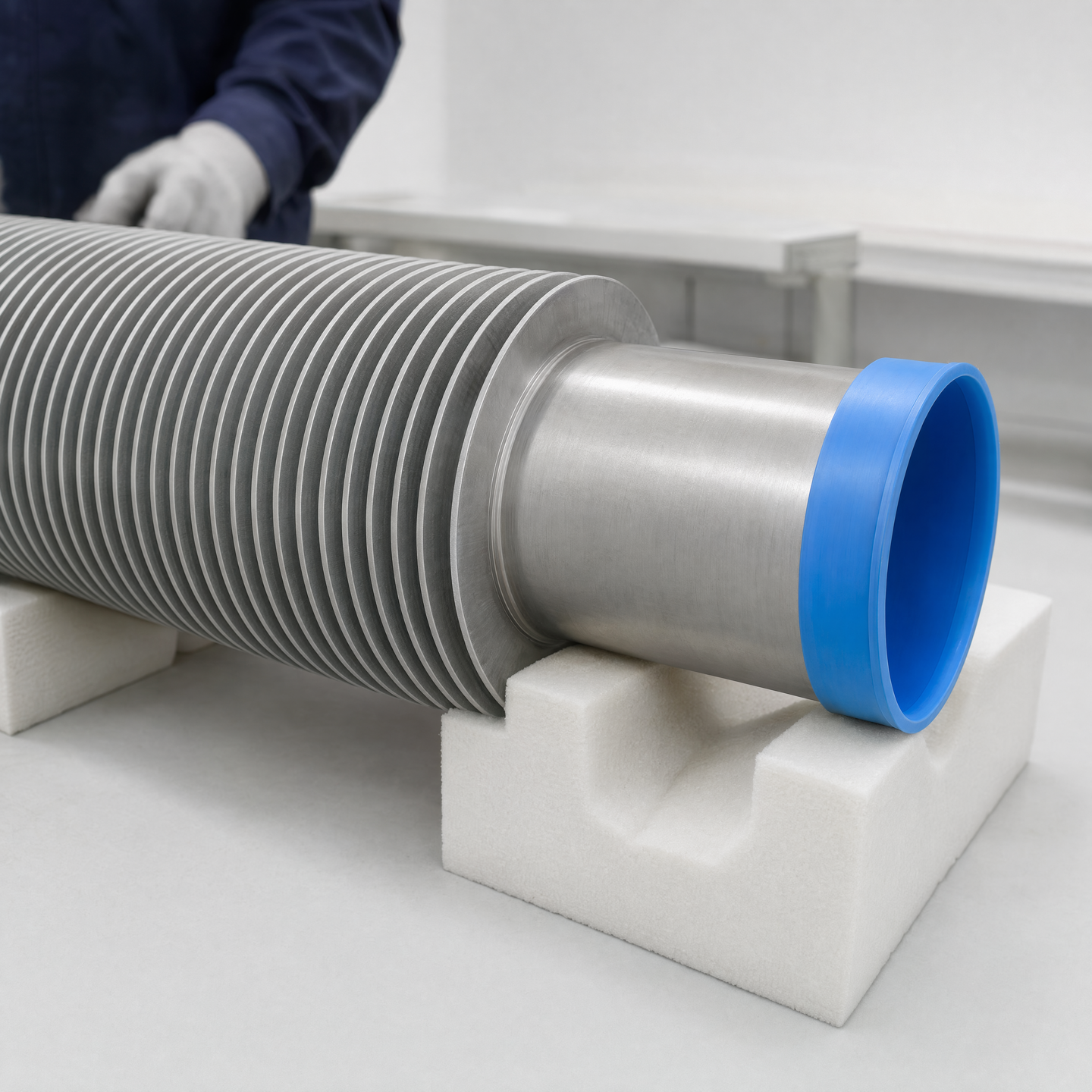

Illustrative fin termination and short bare tube end prepared for integration
End conditionRead fin termination, bare-end length and protection as one preparation state.

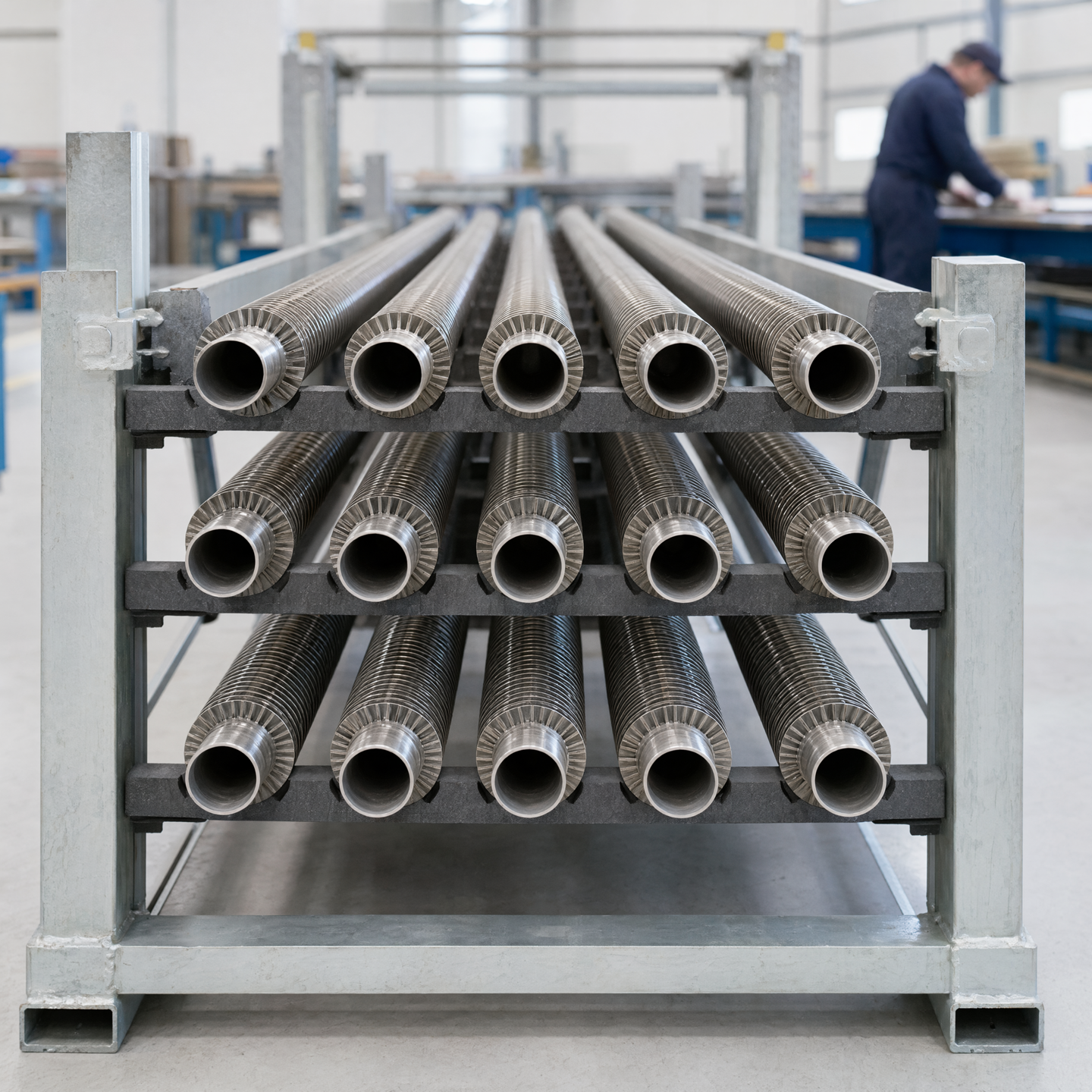

Illustrative end view of aligned finned-tube rows on a support frame
Row relationshipKeep ordered tube positions visible before connections or structure remove adjustment access.

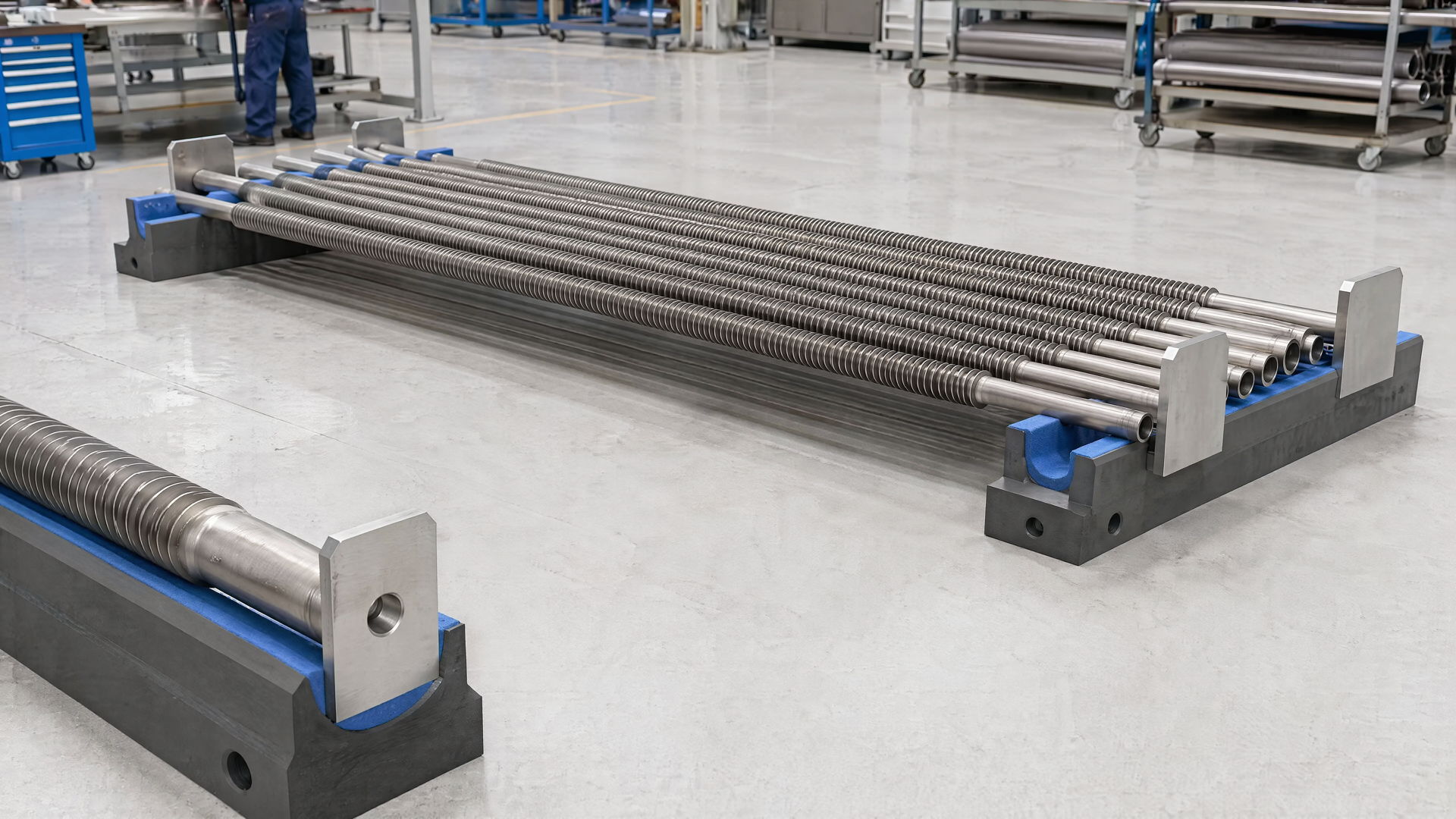

Illustrative tube group stabilized on temporary crossbars and end supports
Temporary supportUse this view for load path and group stability, not as evidence of a finished tube configuration.

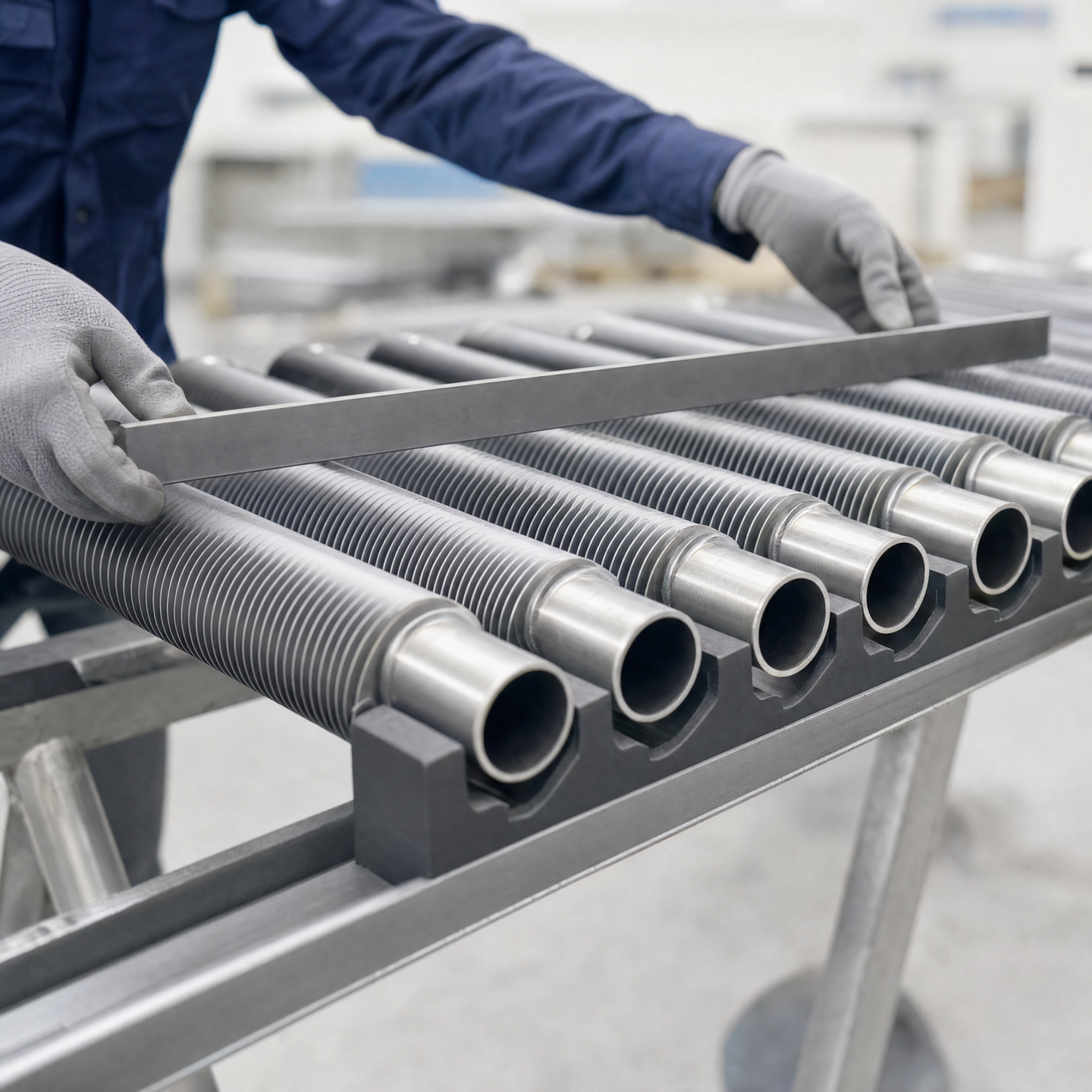

Illustrative aligned tube ends prepared for a later connection stage
Connection readinessConfirm orientation and one-to-one position before the connection body becomes fixed.

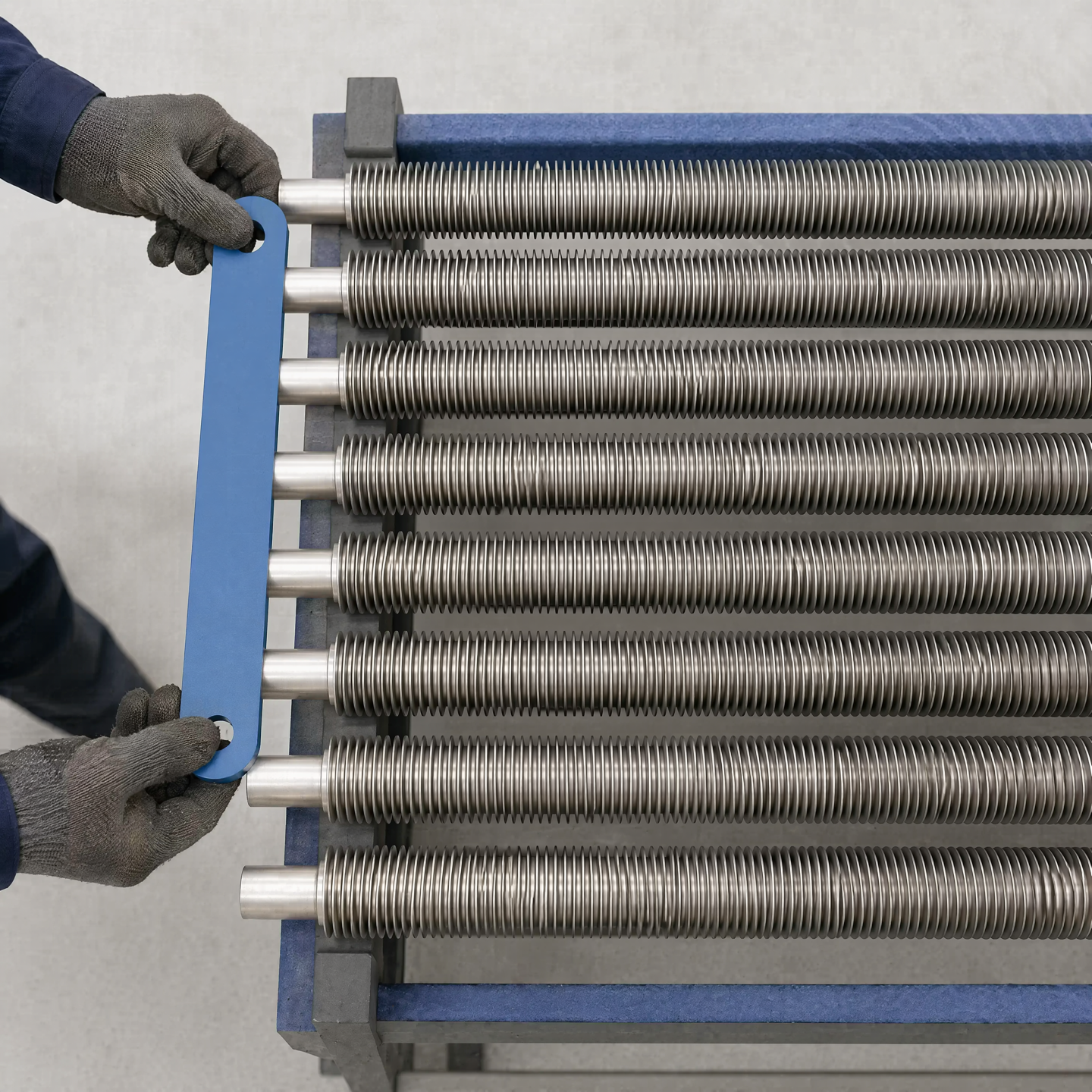

Illustrative spacing aid held outside clearly finned tube rows
Spacing reviewReference external features without pushing a tool into or across the fin surface.

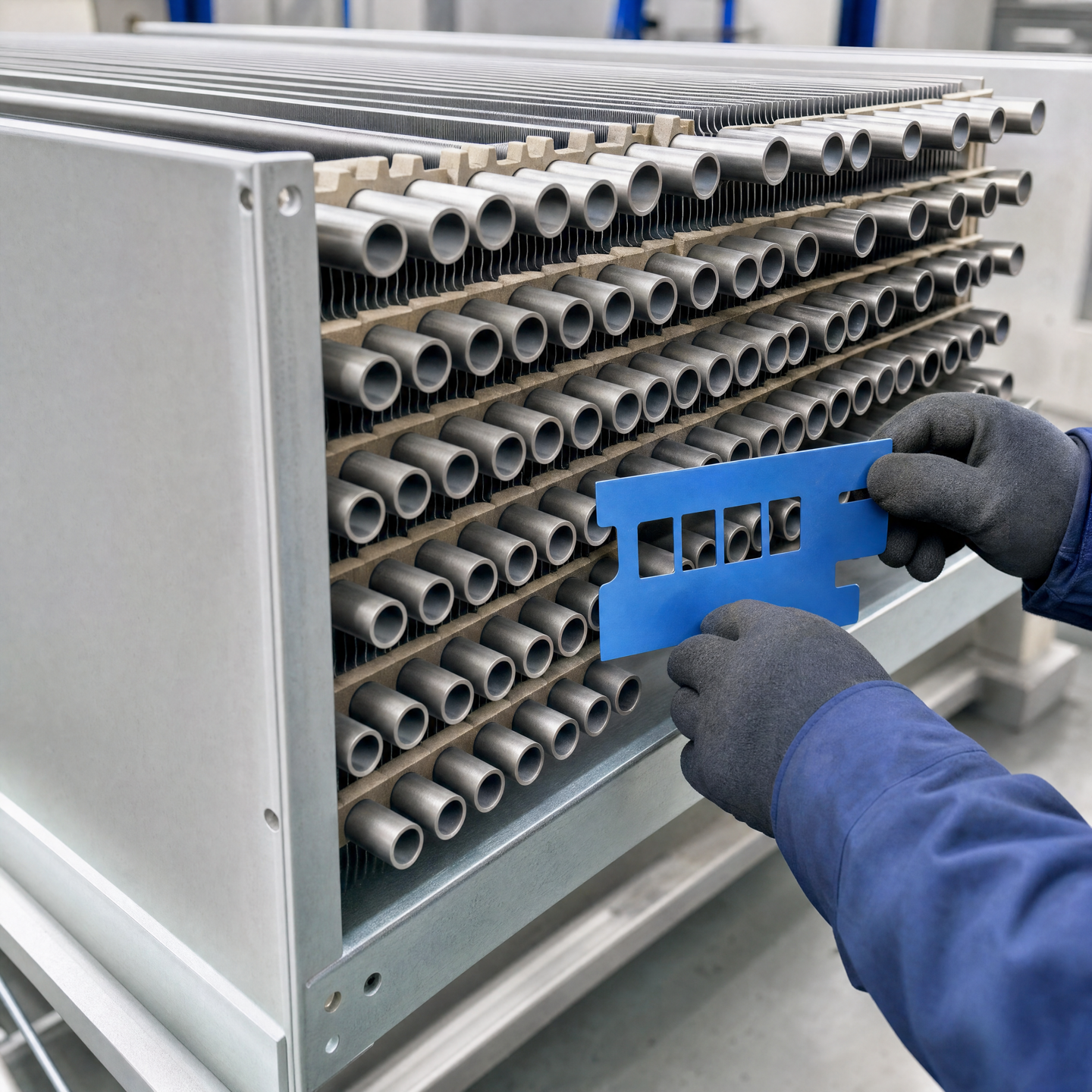

Illustrative row and spacing review at the end of a tube bundle
Bundle reviewUse a visible consistency check without implying a tolerance, method or acceptance result.

02 / Connections

Headers, nozzles, manifolds and flanges

Connection fabrication is coordinated with tube entry, flange orientation, fixture access, weld access and the installation interfaces defined by the customer.

  • Fit-up sequence around restricted areas
  • Access for joining and agreed inspection
  • Interface datums retained through assembly
  • Practical protection of flange faces and open ends
Header, nozzle and flange fit-up adjacent to a finned-tube bank
Clean weld detail at a fabricated exchanger connection

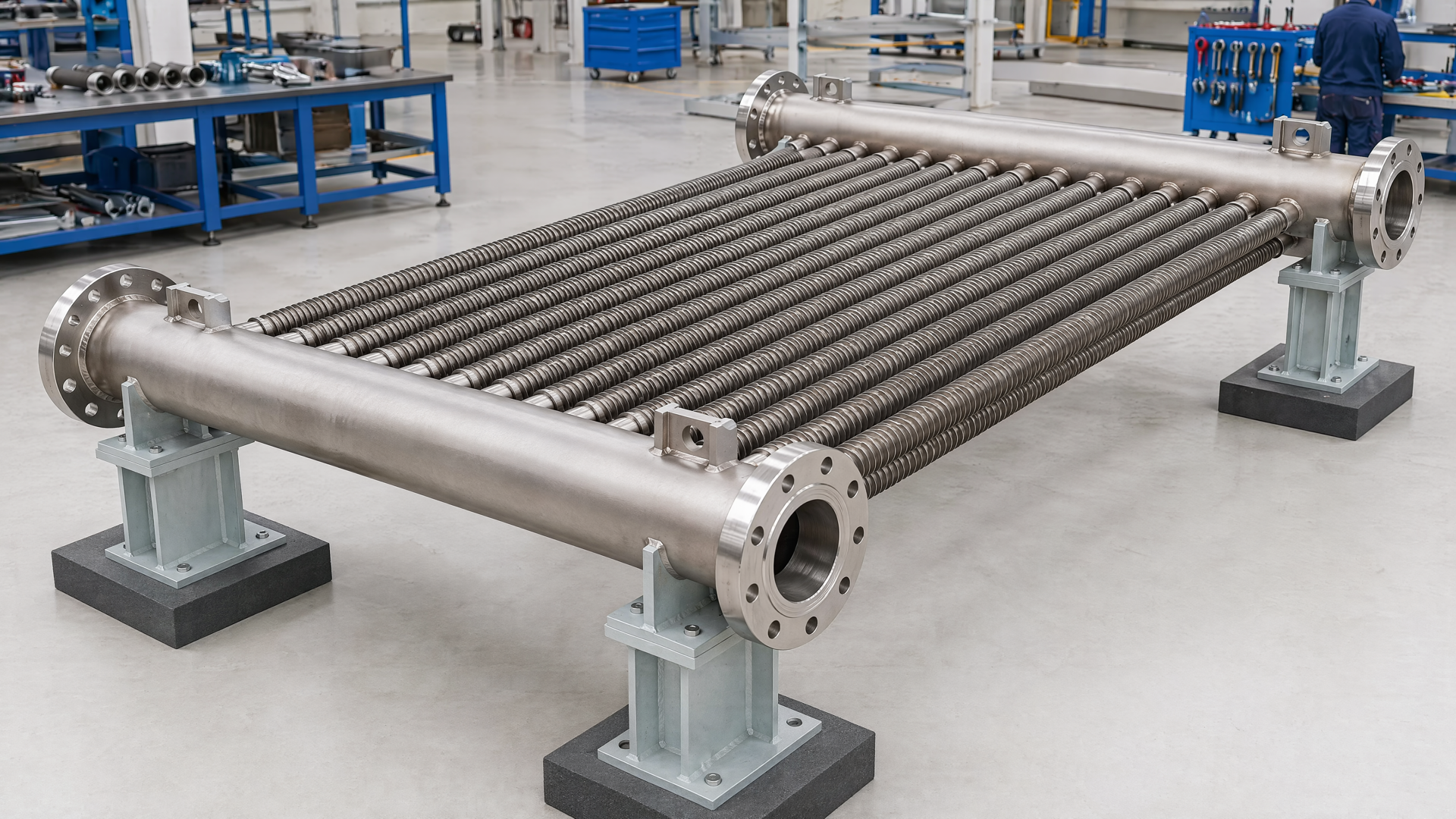

Illustrative tube bank connecting two header bodies on temporary supports
Header architectureReview tube entry, nozzle orientation, flange access and support as one relationship.

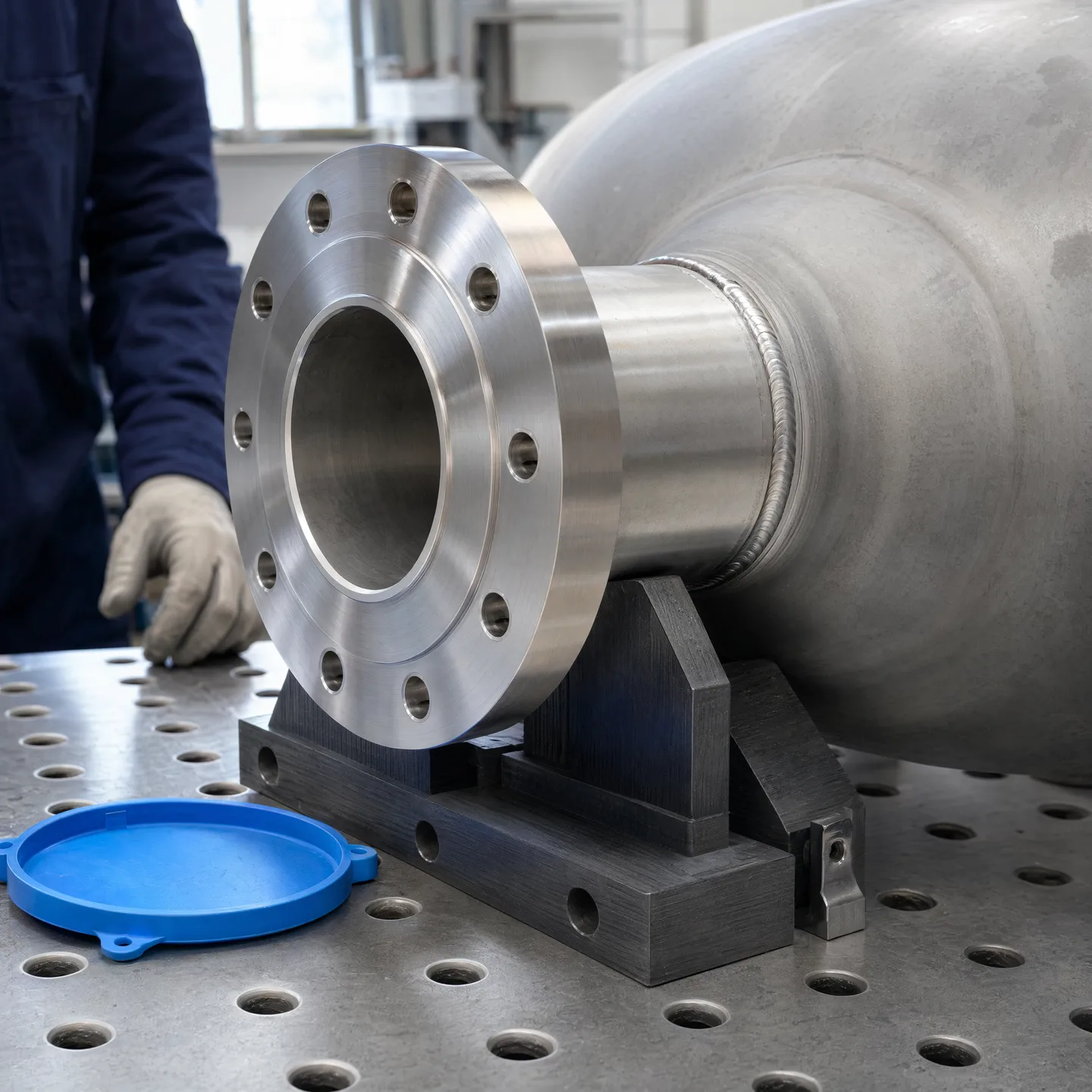

Illustrative flange face and nozzle assembly close-up
Interface detailKeep the face, nozzle, surrounding structure and intended fit-up direction readable together.

03 / Structure

Frames and supports planned with the equipment

The frame is not an afterthought. It establishes datums, protects access and supports handling, installation and final interface checks.

Open welded support frame with bracing and mounting feet

Before installation

Resolve structure while access is still open

Support geometry is reviewed against equipment position, flange access, weld sequence, handling points and the customer's installation envelope.

Installation interface

Keep the agreed datum visible and measurable

Saddles, gussets, baseplates and mounting surfaces are detailed so the relevant interfaces can be held and checked during assembly.

Support saddle, gussets, baseplate and exchanger installation interface
Illustrative complete welded frame before a finned-tube bundle is inserted
Frame readinessCheck openings, support nodes, bracing and insertion access before the bundle arrives.

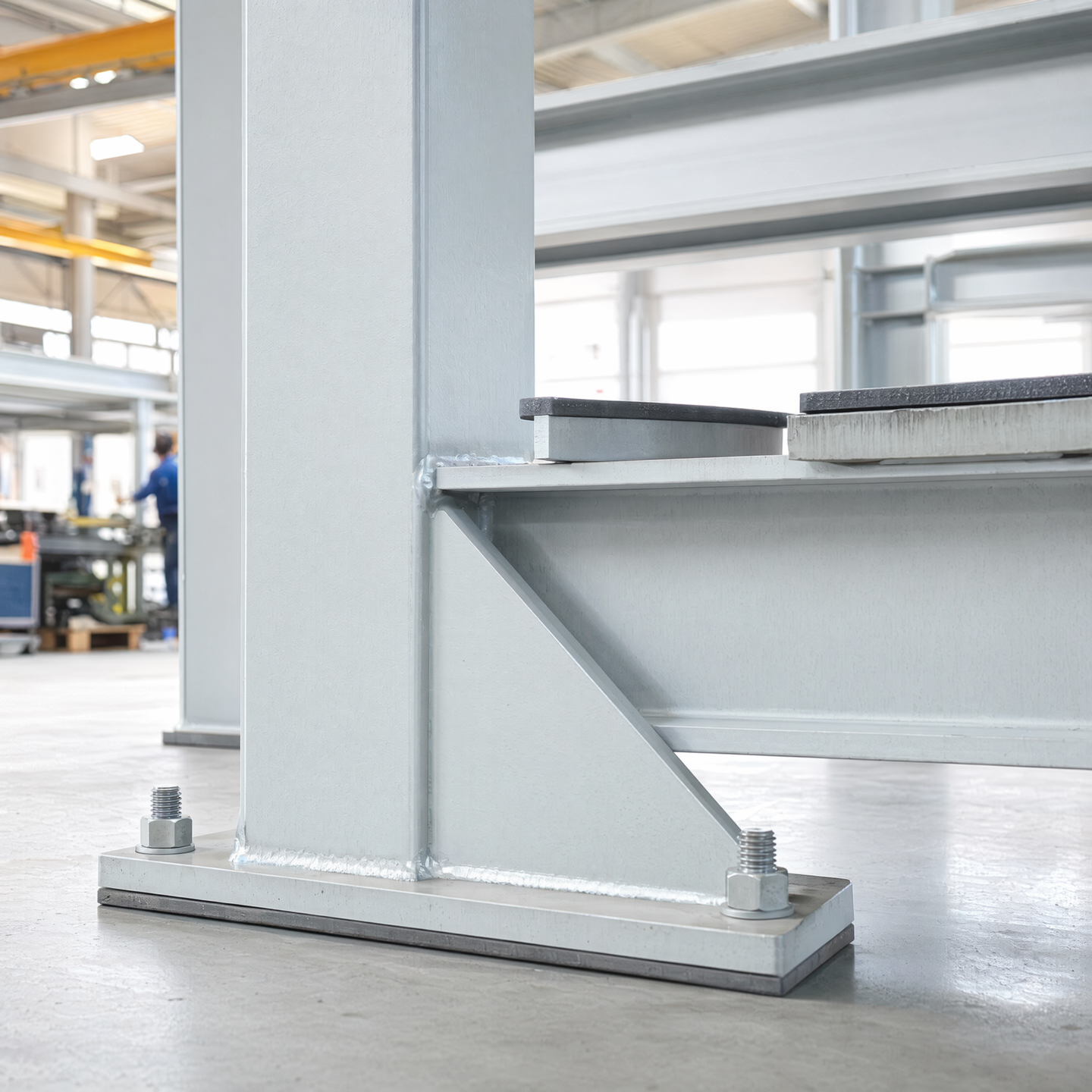

Illustrative base plate, stiffener and support node on a welded frame
Support nodeRelate mounting and load-path details to the customer-supplied interface requirements.

04 / Welding and assembly

Access and sequence are designed into the build

We plan fit-up, joining order, temporary restraint and dimensional checks around the actual geometry. Any proposed change returns to the customer for agreement before it alters the design basis.

Welder performing a controlled close fit-up weld on an exchanger connection
Dimensional check of a flange interface on a framed exchanger
Illustrative weld-access clearance beside a connection and frame member
Access windowReview the joint, approach path, nearby fins, fixture and next component as one space.
Illustrative dimensional check following an external shared datum
Datum retentionPlan staged checks while the external reference and affected interface remain accessible.

05 / DFM matrix

Questions that turn into agreed outputs

The review is a controlled handoff between design authority and manufacturing responsibility.

Customer inputManufacturing questionAgreed output
Thermal design and geometryCan the tube bank, connections and frame be produced and assembled in the shown order?Fabrication sequence and any proposed redline changes
Required interfacesWhich datums must survive fit-up, welding, handling and final assembly?Datum plan, fixtures and interface-check stages
Materials and governing requirementsWhat joining, protection, records and acceptance points must be priced and planned?Quotation basis and documented manufacturing scope
Installation envelopeWhere are access, lifting, support and maintenance constraints likely to conflict?Agreed frame, support and access details
Target delivery stateWhat arrives assembled, protected, loose or prepared for site work?Assembly boundary and packing basis

06 / Interface review framework

Review the points where one manufacturing state becomes the next

The visual states now sit inside the capability they explain. This framework keeps their inputs, decisions and responsibility boundaries connected.

Inputs that control the review

Current product drawings, tube and fin requirements, tube-end condition, header and flange geometry, support intent, customer-defined datums, handling restrictions, inspection expectations and scope exclusions form one package. Mark supplied items and fixed customer decisions clearly.

Revision status matters because one interface may appear in several files. Identify the controlling view and list customer-supplied components separately from requested fabrication items. A preliminary package may leave dimensions open, but it should still show which envelope and connection decisions cannot move.

Questions returned for agreement

StelTherm identifies where fit-up direction, access, restraint, sequence or inspectability conflicts with the controlling geometry. Proposed manufacturing changes are tied to the affected interface and returned before they alter a customer-owned requirement.

The response describes what the shop cannot reach, hold, measure or protect in the proposed state. It then names the practical option, the drawings affected and the decision required. That keeps a fabrication suggestion from silently becoming a thermal-design or equipment-selection decision.

Decisions carried downstream

An accepted answer updates the fabrication detail, temporary support, assembly stage or check point that controls later work. That prevents one local convenience from blocking the next row, hiding a flange face or removing the only useful datum.

The same answer should appear wherever downstream work depends on it: the detail drawing, fit-up note, fixture concept, sequence instruction, inspection point or scope assumption. If those artifacts disagree, the route is not ready even when each isolated component looks plausible.

Scope remains explicit

Prepared components, connections, frames, joining, complete assembly, checks, records and protection are included only as agreed. This review does not transfer thermal sizing, selection, certification or performance responsibility to StelTherm.

Quotation language distinguishes in-scope work, sourced items, subcontracted or third-party work, customer-supplied information and exclusions. Exact processes, standards, inspection methods and document packs remain order-specific until supported by the approved requirement and commercial scope.

Closing the review

Six relationships need a visible answer

A capability review closes when the manufacturing route can explain what locates the component, what keeps it accessible, what state comes next and which drawing or agreement controls the result. A generic promise to make the part is not enough.

The table is a review framework, not a universal process specification. Actual materials, dimensions, joining methods, acceptance values and supplied records come from the customer requirement and the scope agreed for the order.

RelationshipQuestion before release
Tube endAre fin termination, bare-end condition, protection and entry direction compatible with handling and the intended connection?
Header and flangeCan each tube path, nozzle orientation and flange face be fitted, joined and rechecked before adjacent structure removes access?
Frame and supportWhich customer-defined interface establishes position, and how is the bundle inserted and restrained without competing for the same space?
Joining accessWhat tool, fixture, approach and line of sight are needed in the real assembly state, and which component closes that access next?
Datum and checkWhich external reference remains available after each joining stage, and when can the affected feature still be corrected?
HandoffWhat arrives complete, protected, loose or prepared for later work, and which selected records accompany that condition?

Before quotation

The first pass checks document completeness, responsibility boundaries and whether the requested assembly can be described as a coherent manufacturing route. Open facts are listed rather than filled with assumed dimensions, materials, processes or standards.

Before fabrication detail

Customer decisions affecting geometry and interfaces must be resolved or explicitly carried as controlled assumptions. The route identifies which detail can be developed by StelTherm and which change still needs design-authority approval.

Before assembly closes access

Confirm temporary support, fit-up direction, joining sequence and the check points that depend on an open frame or visible interface. A late inspection instruction cannot recover access that the assembly has already removed.

Before handoff

Verify the agreed mounting points, connection faces, openings, support relationships, protection and selected records against the order-specific basis. Unconfirmed certification, performance or inspection claims remain outside public and delivery language.

Capability information should be maintained as controlled product data, not inferred from a generated image or one completed order. A publishable range needs a verified source, clear ownership and a revision process. Until that exists, quoteability remains drawing-dependent and the customer inquiry should receive a focused review of geometry, materials, quantity, interfaces, requirements and intended delivery state. When a verified fact changes, revise every dependent prompt, caption, page module and inquiry field so public language and working documents remain aligned. Keep that change traceable.

When an option cannot yet be supported by controlled capability data, the review should return a specific open item rather than fill the gap with a generic promise. Name the requested feature, the source still needed, the manufacturing relationship affected and the decision that remains with the customer. Once confirmed, carry the answer into the quotation basis and the detail that governs downstream work. This approach lets early review continue while keeping exact materials, dimensions, processes, standards, records and acceptance values outside the public capability statement until they are verified.
